REAR ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

(3)  Rear ultrasonic sensor short-cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the rear ultrasonic sensor short-cord terminals is as indicated in the table.

ac5wzw00006762

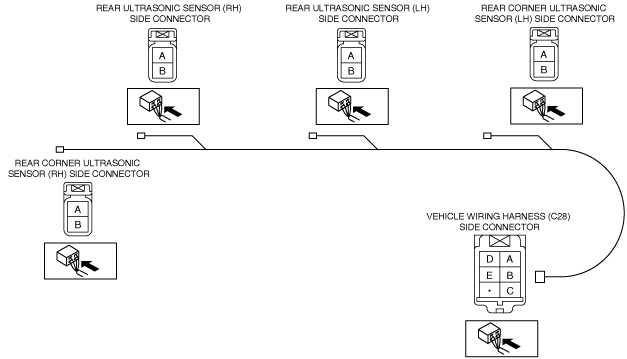

ac5jjw00001278

•  If not as indicated in the table, replace the rear ultrasonic sensor short-cord.
