i-stop CONTROL

id111100000100


i-stop Control Outline


SKYACTIV-G 2.0, SKYACTIV-G 2.5

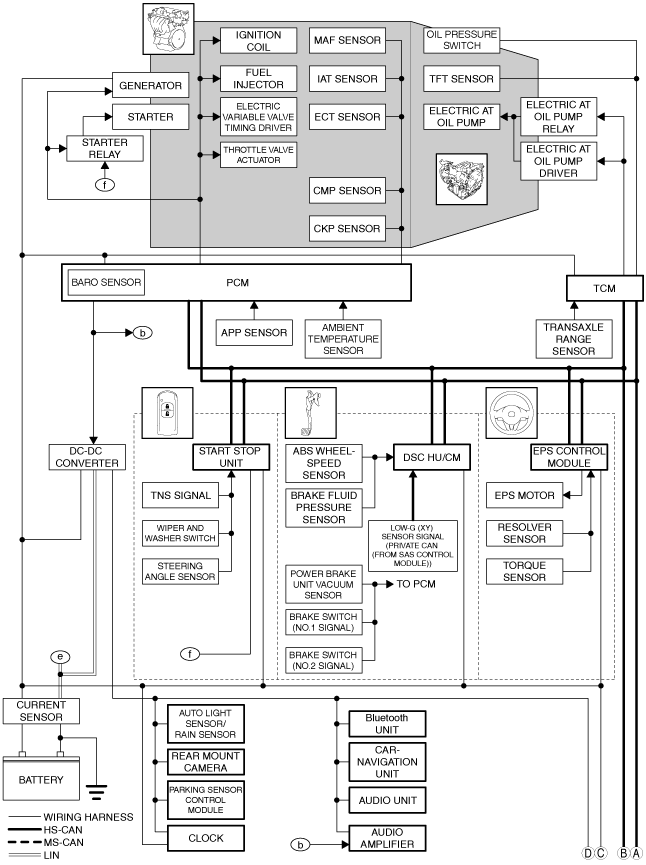

Without i-ELOOP (ATX)

am6zzn00002654
am6zzn00002655

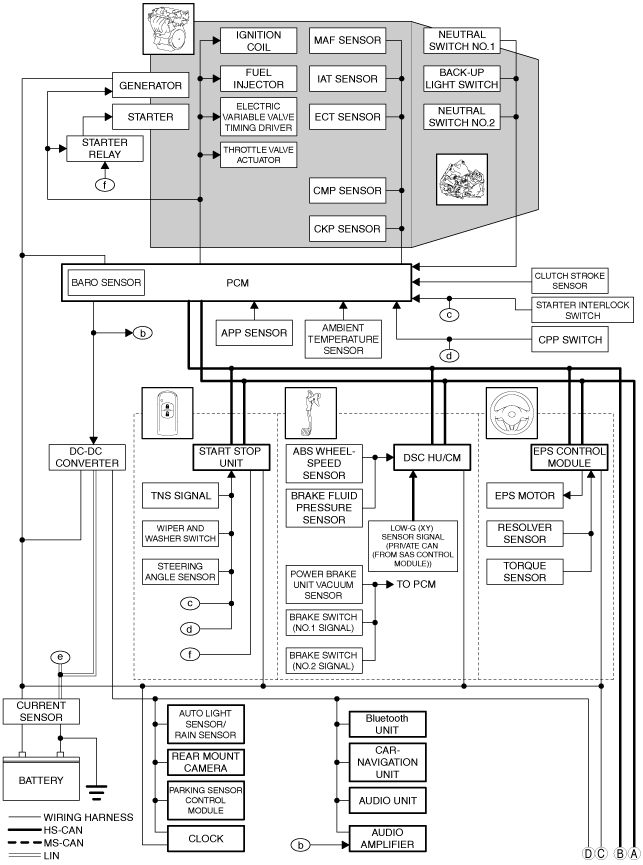

Without i-ELOOP (MTX)

ac5wzn00003556
am6zzn00002655

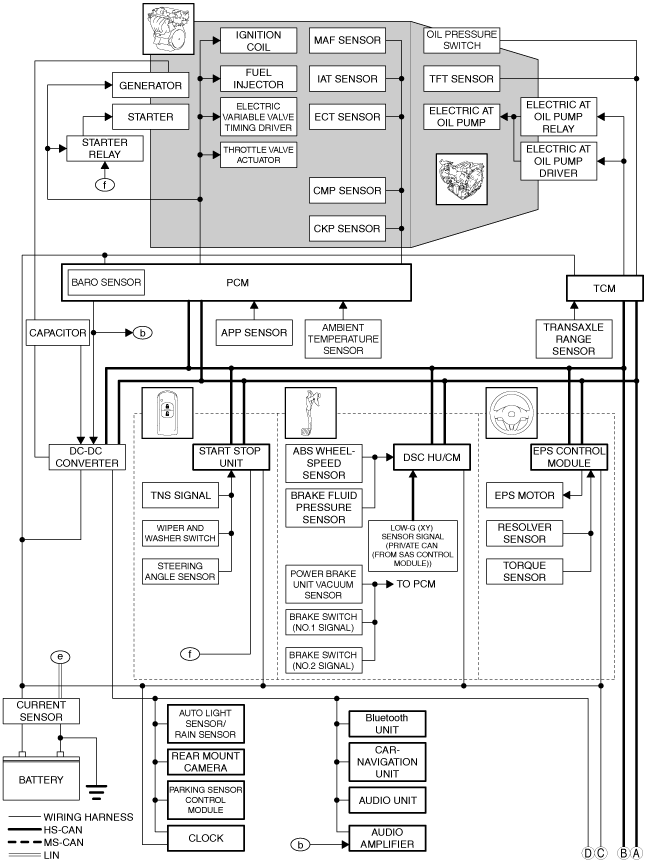

With i-ELOOP

am6zzn00002657

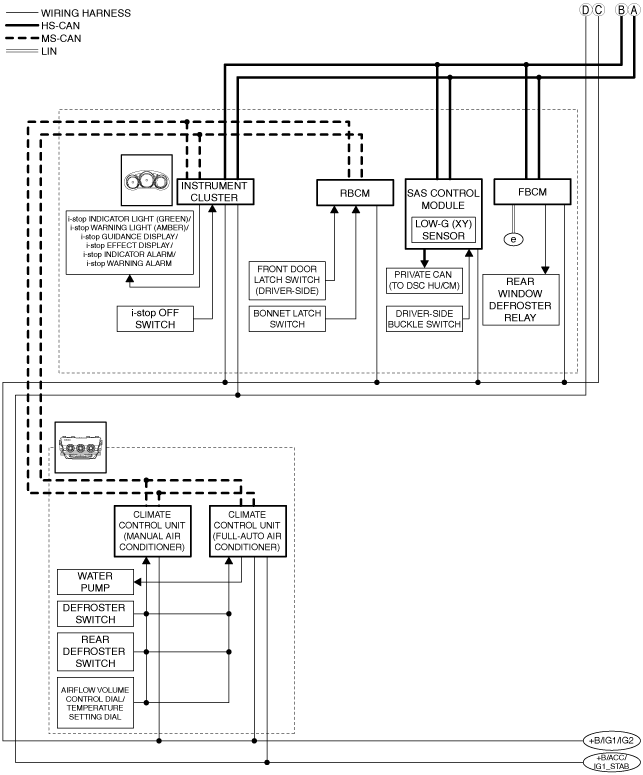

am6zzn00002655


SKYACTIV-D 2.2

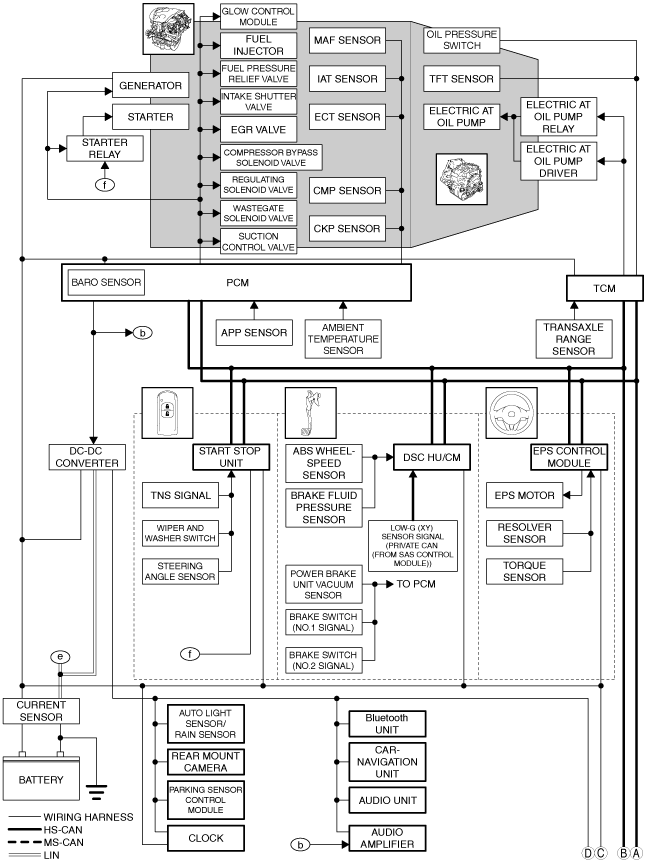

ATX

am6zzn00002659
am6zzn00002655

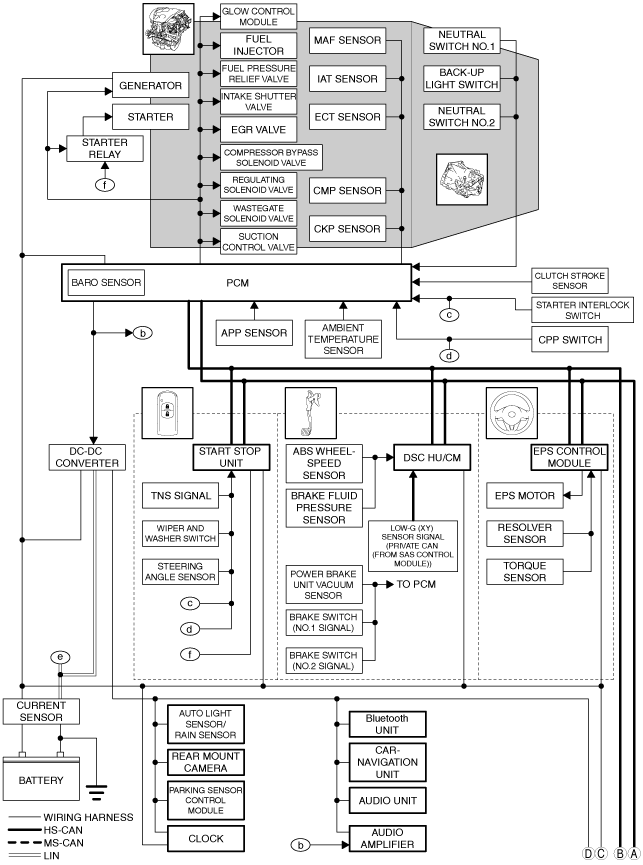

MTX

ac5wzn00003557
am6zzn00002655


i-stop Control Modules

•  i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference
PCM
SKYACTIV-G 2.0, SKYACTIV-G 2.5
(See i-stop CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop INDICATOR ALARM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop WARNING ALARM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
SKYACTIV-D 2.2
(See i-stop CONTROL [SKYACTIV-D 2.2].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
(See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].)
(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DSC HU/CM
(See HILL LAUNCH ASSIST (HLA).)
TCM (ATX)
(See ELECTRIC AT OIL PUMP [FW6A-EL, FW6AX-EL].)
(See ELECTRIC AT OIL PUMP [GW6A-EL, GW6AX-EL].)
Start stop unit
(See START STOP UNIT.)
EPS control module
(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
Climate control unit
(See AIR CONDITIONER i-stop CONTROL [MANUAL AIR CONDITIONER].)
(See AIR CONDITIONER i-stop CONTROL [FULL-AUTO AIR CONDITIONER].)
SAS control module
(See SAS CONTROL MODULE.)
Instrument cluster
(See INSTRUMENT CLUSTER.)
Front body control module (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM).)
Rear body control module (RBCM)
(See REAR BODY CONTROL MODULE (RBCM).)
