INSTRUMENT CLUSTER

id092200018500

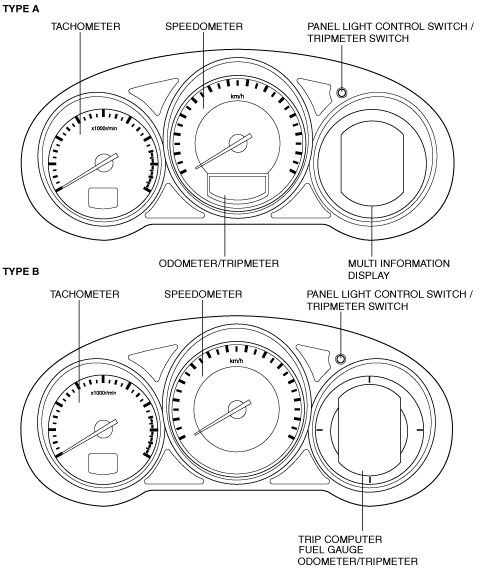

Outline

• The instrument cluster centrally controls the following:

Type A

― Speedometer

― Tachometer

― Odometer/tripmeter

― Fuel gauge

― Warning light/Indicator light

― Warning beep

― Trip computer

― Multi information display

― Panel light

Type B

― Speedometer

― Tachometer

― Odometer/tripmeter

― Fuel gauge

― Warning light/Indicator light

― Warning beep

― Trip computer

― Panel light

Function

• The instrument cluster displays the following information to notify the driver of the vehicle conditions.

― Vehicle speed (speedometer)

― Engine speed (tachometer)

― Remaining fuel quantity (fuel gauge)

― Traveled distance (odometer/tripmeter)

― Average fuel economy, average vehicle speed, instantaneous fuel economy, remaining distance to empty (trip computer)

― Indicator/warning lights

― Indicator/warning messages (Type A only)

Speedometer display function

• The instrument cluster controls the speedometer based on the vehicle speed signal sent via CAN transmission from the PCM, and displays the current vehicle speed. (See SPEEDOMETER.)

Tachometer display function

• The instrument cluster controls the tachometer based on the engine speed signal sent via CAN transmission from the PCM, and displays the current engine speed. (See TACHOMETER.)

Fuel gauge display function

• The instrument cluster displays the remaining fuel quantity based on the fuel gauge resistance signal sent via CAN transmission from the rear body control module (RBCM), and the fuel injection amount signal sent via CAN transmission from the PCM. (See FUEL GAUGE.)

Odometer/tripmeter display function

• The instrument cluster displays the total traveled distance/traveled distance over a specific interval based on the travel distance signal sent via CAN transmission from the PCM. (See ODOMETER/TRIPMETER.)

Trip computer calculation function

• The instrument cluster calculates the average fuel economy, average vehicle speed, instantaneous fuel economy, and the remaining distance to empty, and displays it on the LCD in the instrument cluster. (See TRIP COMPUTER INFORMATION SYSTEM.)

Warning/Indicator lights illuminate/flash function

• The instrument cluster illuminates/flashes the indicator/warning lights to notify the user of the vehicle system conditions.

• The types of indicator/warning lights are as follows: Refer to reference for details on each indicator/warning light.

• For vehicles with the center display, a warning message in the center display is displayed when the warning/indicator light is turned on or flashed. For the display content, refer to [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

• For vehicles with the multi-information display, a warning message in the multi-information display is displayed when the warning/indicator light is turned on or flashed. For the display content, refer to [MULTI-INFORMATION DISPLAY]. (See MULTI-INFORMATION DISPLAY.)

Type A

ac5wzn00003058

×: Applicable

—: Not applicable

No.	Name	Multi-information display	Center display	Comment	Warning/indicator lights which illuminate during initial check	Reference
1	Security indicator light	—	—	—	×	(See SECURITY INDICATOR LIGHT.)
2	Air bag/front seat belt pretensioner system warning light	—	×	—	×	(See AIR BAG SYSTEM WARNING LIGHT.)
3	ABS warning light	—	×	—	—	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
4	Electric parking brake warning light	×	×	—	×	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
5	Lights-on indicator light	×	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
6	Front fog light indicator light	—	—	With front fog light	—	(See FRONT FOG LIGHTS INDICATOR LIGHT.)
7	i-stop warning light (amber)/indicator light (green)	—	×	With i-stop	×	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
7	120 km/h warning light	—	—	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
8	Cruise main indicator light (amber)/cruise set indicator light (green)	—	—	With cruise control system	×	(See CRUISE MAIN INDICATOR LIGHT (AMBER) [SKYACTIV-D 2.2].) (See CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See CRUISE MAIN INDICATOR LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
8	Mazda radar cruise control (MRCC) warning light (amber)/indicator light (green)	×	—	With MRCC	×	(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING LIGHT/INDICATOR LIGHT.)
9	Turn signal/hazard warning indicator lights	—	—	—	—	(See TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS.)
10	Master warning light	×	×	—	—	(See MASTER WARNING LIGHT.)
11	Low fuel warning light	—	×	—	—	(See LOW FUEL WARNING LIGHT.)
12	Brake system warning light	×	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
13	Electric parking brake indicator light	×	×	—	×	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
14	Glow indicator light	—	×	SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
15	Headlight high-beam indicator light	—	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
16	Charging system warning light	×	×	—	×	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
17	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	×	—	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
18	Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	—	—	With SCBS system	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
19	LED headlight warning light	—	×	With front combination light (LED type)	×	(See LED HEADLIGHT WARNING LIGHT.)
20	Engine oil warning light	×	×	—	×	(See ENGINE OIL WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
21	TCS OFF indicator light	—	—	—	×	(See TCS OFF SWITCH, TCS OFF INDICATOR LIGHT.)
22	High beam control (HBC) system warning light (amber)/indicator light (green)	×	×	With HBC System	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
22	Adaptive LED headlights indicator light (green)/adaptive LED headlights warning light (amber)	×	×	With adaptive LED headlights	×	(See ADAPTIVE LED HEADLIGHTS INDICATOR LIGHT (GREEN)/ADAPTIVE LED HEADLIGHTS WARNING LIGHT (AMBER).)
23	Seat belt warning light	—	—	—	—	(See SEAT BELT WARNING LIGHT.)
24	Rear fog light indicator light	—	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
25	Tire pressure monitoring system warning light	×	×	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
26	TCS/DSC indicator light	—	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
27	Select mode indication	—	—	ATX	—	(See SELECT MODE INDICATOR LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	Shift position indicator/gear position indicator	—	—	—	—	(See SHIFT POSITION INDICATOR LIGHT [FW6A-EL, FW6AX-EL].) (See SHIFT POSITION INDICATOR LIGHT [GW6A-EL, GW6AX-EL].) (See GEAR POSITION INDICATION [FW6A-EL, FW6AX-EL].) (See GEAR POSITION INDICATION [GW6A-EL, GW6AX-EL].)
	Gear shift indicator	—	—	MTX	—	(See GEAR SHIFT INDICATOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 2.2].)
28	Check engine light	—	×	—	×	(See CHECK ENGINE LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 2.2].)

Type B

ac5wzn00003060

×: Applicable

—: Not applicable

No.	Name	Center display	Comment	Warning/indicator lights which illuminate during initial check	Reference
1	Security indicator light	—	—	×	(See SECURITY INDICATOR LIGHT.)
2	Air bag/front seat belt pretensioner system warning light	×	—	×	(See AIR BAG SYSTEM WARNING LIGHT.)
3	ABS warning light	×	—	—	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
4	Electric parking brake warning light	×	—	×	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
5	Lights-on indicator light	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
6	Front fog light indicator light	—	With front fog light	—	(See FRONT FOG LIGHTS INDICATOR LIGHT.)
7	i-stop warning light (amber)/indicator light (green)	×	With i-stop	×	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
7	120 km/h warning light	—	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
8	Cruise main indicator light (amber)/cruise set indicator light (green)	—	With cruise control system	×	(See CRUISE MAIN INDICATOR LIGHT (AMBER) [SKYACTIV-D 2.2].) (See CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See CRUISE MAIN INDICATOR LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
9	KEY warning light (red)/indicator light (green)	×	—	—	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
10	Turn signal/hazard warning indicator lights	—	—	—	(See TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS.)
11	Door-ajar warning light	—	—	—	(See DOOR-AJAR WARNING LIGHT.)
12	LED headlight warning light	×	With front combination light (LED type)	×	(See LED HEADLIGHT WARNING LIGHT.)
13	Automatic transaxle warning light	×	ATX	×	(See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL, FW6AX-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL, GW6AX-EL].)
14	Diesel particulate filter indicator light	×	SKYACTIV-D 2.2	×	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
15	Lane departure warning system (LDWS) warning light (amber)/indicator light (green)	×	With LDWS	×	(See LDWS WARNING LIGHT.)
16	Headlight high-beam indicator light	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
17	Wrench indicator light	×	—	×	(See WRENCH INDICATOR LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See WRENCH INDICATOR LIGHT [SKYACTIV-D 2.2].)
18	Charging system warning light	×	—	×	(See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
19	Master warning light	×	—	—	(See MASTER WARNING LIGHT.)
20	Low fuel warning light	×	—	—	(See LOW FUEL WARNING LIGHT.)
21	Engine oil warning light	×	—	×	(See ENGINE OIL WARNING LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
22	Electric parking brake indicator light	×	—	×	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
23	LDWS OFF indicator light	—	With LDWS	×	(See LDWS OFF INDICATION/LDWS OFF INDICATOR LIGHT.)
24	Low washer fluid level warning light	×	With washer fluid-level sensor	×	(See WASHER FLUID-LEVEL SENSOR.)
25	Brake system warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
26	Glow indicator light	×	SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
27	Brake pedal operation demand indicator light	—	—	×	(See BRAKE PEDAL OPERATION DEMAND INDICATOR LIGHT.)
28	Power steering malfunction indicator light	×	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
29	Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	—	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
30	4WD warning light	×	4WD	×	(See 4WD WARNING LIGHT.)
31	Blind spot monitoring (BSM) off indicator light	—	—	×	(See BLIND SPOT MONITORING (BSM) OFF INDICATION/BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
32	TCS OFF indicator light	—	—	×	(See TCS OFF SWITCH, TCS OFF INDICATOR LIGHT.)
33	Seat belt warning light	—	—	—	(See SEAT BELT WARNING LIGHT.)
34	High beam control (HBC) system warning light (amber)/indicator light (green)	×	With HBC system	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
35	Rear fog light indicator light	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
36	Tire pressure monitoring system warning light	×	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
37	TCS/DSC indicator light	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
38	Select mode indication	—	ATX	—	(See SELECT MODE INDICATOR LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
	Shift position indicator/gear position indicator	—	—	—	(See SHIFT POSITION INDICATOR LIGHT [FW6A-EL, FW6AX-EL].) (See SHIFT POSITION INDICATOR LIGHT [GW6A-EL, GW6AX-EL].) (See GEAR POSITION INDICATION [FW6A-EL, FW6AX-EL].) (See GEAR POSITION INDICATION [GW6A-EL, GW6AX-EL].)
	Gear shift indicator	—	MTX	—	(See GEAR SHIFT INDICATOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 2.2].)
39	Check engine light	×	—	×	(See CHECK ENGINE LIGHT [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 2.2].)

Alarm operation function

• The instrument cluster sounds the alarm using the buzzer built into the instrument cluster to notify the user of the vehicle conditions.

• The alarm types are as follows: Refer to reference for details on each alarm.

Name

Reference

Keyless warning alarm

(See KEYLESS WARNING ALARM.)

Lights-on reminder warning alarm

(See LIGHTS-ON REMINDER WARNING ALARM.)

Turn and hazard indicator alarm

(See TURN AND HAZARD INDICATOR ALARM.)

Panel light control indicator alarm

(See PANEL LIGHT CONTROL INDICATOR ALARM.)

Smart city brake support (SCBS) warning alarm (with SCBS)

(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).)

(See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)

RCTA warning alarm (with BSM system)

(See BLIND SPOT MONITORING (BSM) WARNING BUZZER.)

Seat belt warning alarm

(See SEAT BELT WARNING ALARM.)

Tire pressure warning alarm (with TPMS)

(See TIRE PRESSURE MONITORING SYSTEM (TPMS).)

Electric parking brake chime

(See ELECTRIC PARKING BRAKE CHIME.)

Smart brake support (SBS) warning alarm (with SBS)

(See SMART BRAKE SUPPORT (SBS) WARNING ALARM.)

MRCC warning alarm (with MRCC)

(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM WARNING ALARM.)

Blind spot monitoring (BSM) warning buzzer (with BSM system)

(See BLIND SPOT MONITORING (BSM) WARNING BUZZER.)

LDWS warning alarm (with lane departure warning system (LDWS))

(See LANE DEPARTURE WARNING SOUND.)

Air bag system warning alarm

(See AIR BAG SYSTEM WARNING ALARM.)

120 km/h warning alarm (with 120 km/h warning alarm)

(See 120 km/h WARNING ALARM.)

i-stop warning alarm (with i-stop system)

(See i-stop WARNING ALARM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)

i-ELOOP warning alarm (with i-ELOOP)

(See i-ELOOP WARNING ALARM [i-ELOOP].)

Name	Reference
Keyless warning alarm	(See KEYLESS WARNING ALARM.)
Lights-on reminder warning alarm	(See LIGHTS-ON REMINDER WARNING ALARM.)
Turn and hazard indicator alarm	(See TURN AND HAZARD INDICATOR ALARM.)
Panel light control indicator alarm	(See PANEL LIGHT CONTROL INDICATOR ALARM.)
Smart city brake support (SCBS) warning alarm (with SCBS)	(See SMART CITY BRAKE SUPPORT [FORWARD] (SCBS F).) (See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)
RCTA warning alarm (with BSM system)	(See BLIND SPOT MONITORING (BSM) WARNING BUZZER.)
Seat belt warning alarm	(See SEAT BELT WARNING ALARM.)
Tire pressure warning alarm (with TPMS)	(See TIRE PRESSURE MONITORING SYSTEM (TPMS).)
Electric parking brake chime	(See ELECTRIC PARKING BRAKE CHIME.)
Smart brake support (SBS) warning alarm (with SBS)	(See SMART BRAKE SUPPORT (SBS) WARNING ALARM.)
MRCC warning alarm (with MRCC)	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM WARNING ALARM.)
Blind spot monitoring (BSM) warning buzzer (with BSM system)	(See BLIND SPOT MONITORING (BSM) WARNING BUZZER.)
LDWS warning alarm (with lane departure warning system (LDWS))	(See LANE DEPARTURE WARNING SOUND.)
Air bag system warning alarm	(See AIR BAG SYSTEM WARNING ALARM.)
120 km/h warning alarm (with 120 km/h warning alarm)	(See 120 km/h WARNING ALARM.)
i-stop warning alarm (with i-stop system)	(See i-stop WARNING ALARM [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
i-ELOOP warning alarm (with i-ELOOP)	(See i-ELOOP WARNING ALARM [i-ELOOP].)

• If several alarm request signals are received simultaneously, the alarms sound according to the order of precedence in the following table.

Ignition is switched OFF (LOCK)

Order or precedence	Name
1	Keyless warning alarm (pattern A)
2	Lights-on reminder warning alarm
2	Keyless warning alarm (pattern B, C)
3	Turn and hazard indicator alarm
4	Panel light control indicator alarm

Ignition switch ON (engine off or on)

Order or precedence	Name
1	Smart city brake support (SCBS) warning alarm (With SCBS)
2	Blind spot monitoring (BSM) warning buzzer (Rear cross traffic alert (RCTA) function) (With BSM system)
3	i-stop warning alarm (with i-stop system)
4	120 km/h warning alarm (with 120 km/h warning alarm)
5	Seat belt warning alarm (Driver/passenger)
6	Seat belt warning alarm (Rear) (with rear seat belt warning alarm)
7	Tire pressure warning alarm (Tire pressure monitoring system initialization) (With TPMS)
8	Electric parking brake alarm
9	Smart brake support (SBS) warning alarm (with SBS)
10	MRCC warning alarm (With MRCC)
11	Blind spot monitoring (BSM) warning buzzer (Blind spot monitoring (BSM) function) (With BSM system)
12	LDWS warning alarm (With lane departure warning system (LDWS))
13	Keyless warning alarm
14	Air bag system warning alarm
15	i-ELOOP warning alarm (With i-ELOOP)
16	Turn and hazard indicator alarm
17	Panel light control indicator alarm

Panel light control function

• The instrument cluster changes the panel light brightness according to the ignition switch being turned ON (engine off or on) or the TNS being illuminated.

Vehicle specification information transmission function

• The instrument cluster sends vehicle specification information stored during configuration to the following modules via CAN transmission. The following modules perform configuration automatically by reading the vehicle specification information from the instrument cluster.

― PCM

― TCM (ATX)

― AFS control module (With AFS)

― Adaptive LED headlights control module (With adaptive LED headlights)

― 4WD control module (4WD)

― Laser sensor (With smart city brake support (SCBS))

― DSC HU/CM

― EPS control module

― Front body control module (FBCM)

― Start stop unit

― Radar unit (With mazda radar cruise control (MRCC) system)

― SAS control module

― Connectivity master unit (CMU) (With center display)

― Audio amplifier (With Bose^®)

― Electric parking brake control module

― Occupant classification sensor

― Rear body control module (RBCM)

― Blind spot monitoring (BSM) control module (With BSM system)

― Climate control unit (With full-auto air conditioner)

― Indicator unit (With manual air conditioner)

Battery discharge suppression function

Note

• This function is established for suppressing battery discharge during vehicle manufacture and shipment, however, if a room fuse is removed from a vehicle while the total traveled distance is low, the function may operate when the vehicle is in the market.

• The battery discharge suppression is a function in which the instrument cluster sends a battery discharge suppression signal to the following units based on the room fuse condition and the total traveled distance, and suppresses battery discharge by restricting the operation of electric load for the following units.

Unit

Control description

Front body control module (FBCM)

Day time running light turns off 5 min after it is illuminated. (Only when engine stopped)

Start stop unit

Ignition is switched off 25 min after ignition is switched to ACC or ON (engine off) (For ATX, only when selector lever is in P position).

Unit	Control description
Front body control module (FBCM)	Day time running light turns off 5 min after it is illuminated. (Only when engine stopped)
Start stop unit	Ignition is switched off 25 min after ignition is switched to ACC or ON (engine off) (For ATX, only when selector lever is in P position).

• The battery discharge suppression function operates when the total traveled distance is the threshold or less and the room fuse has been removed.

• When the battery discharge suppression function is operated, the instrument cluster displays F0-002, F0-HHH, F0-LLL in the odometer/tripmeter of the instrument cluster to indicate that the battery discharge suppression function is operating.

• The battery discharge suppression function is stopped under the following conditions.

― Room fuse is installed

― Engine is started

― Total traveled distance exceeds the threshold value

Structural View

am6zzn00003359

System Wiring Diagram

am6zzn00004005

ac5wzn00003062

ac5wzn00003560

Fail-safe

Speedometer

• If the CAN signal cannot be received normally, the instrument cluster displays the 0 mark.

Tachometer

• If the CAN signal cannot be received normally, the instrument cluster displays the 0 mark.

Fuel gauge

• If the CAN signal cannot be received normally, the instrument cluster turns off one segment at regular time intervals since the segments calculated based on the signal last received are displayed.

Odometer/tripmeter

• If the instrument cluster detects a malfunction in the internal CPU, the instrument cluster displays the “——“.

Warning lights

• If the CAN signal cannot be received normally, the instrument cluster turns the warning light on.

Indicator lights

• If the CAN signal cannot be received normally, the instrument cluster turns the indicator light off.

Alarm

• If the CAN signal cannot be received normally, the instrument cluster stops the alarm.

Panel light

• If the CAN signal cannot be received normally, the instrument cluster turns the panel light on.

Trip computer information system

• If the instrument cluster detects a malfunction in the internal CPU, the instrument cluster displays the “——“.

Ambient temperature display

• If the CAN signal cannot be received normally, the instrument cluster displays the “——“.
