CAPACITOR (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP]

id131704006000


Procedure Before i-ELOOP-Related Part Servicing

Warning
•  If the terminal of one of the i-ELOOP-related parts contacts the vehicle body with the service plug of the capacitor connected, it could cause a fire and damage to electrical parts. In addition, if the terminal contacts your body, it could cause electrocution. Disconnect the service plug of the capacitor before disconnecting the i-ELOOP-related part terminal. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)
―  For the i-ELOOP-related part terminals, refer to the “PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING”. (See PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING [i-ELOOP].)

Cautions On Handling Capacitor (i-ELOOP)

Caution
•  If the capacitor (i-ELOOP) is placed on its side, its function may be lost. When storing/transporting the capacitor, do not place it on its side. (Store/transport in upright position)
•  Do not use a capacitor (i-ELOOP) that has been dropped because it may not operate correctly.
•  When disposing of the capacitor (i-ELOOP), perform compulsory discharge of the capacitor before disposal. (See CAPACITOR (i-ELOOP) COMPULSORY DISCHARGE [i-ELOOP].)

Capacitor (i-ELOOP) Removal/Installation

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

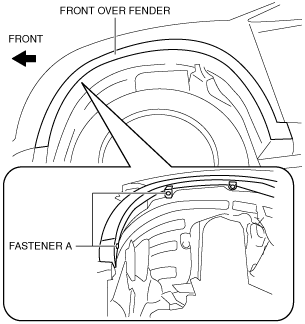

2.  Remove fastener A.

ac5wzw00008016

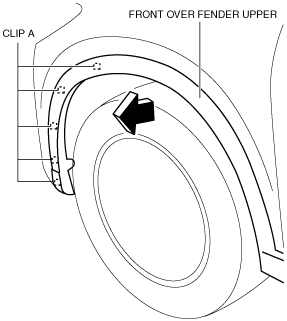

3.  Pull the front over fender upper in the direction of the arrow while removing clip A.

ac5wzw00008325

4.  Remove screw A and bolt A then, partially peel back the front under cover No.1.

ac5wzw00008014

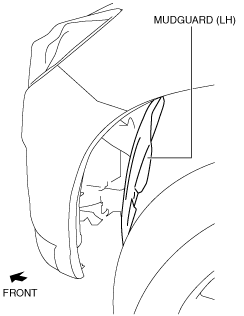

5.  Set the mudguard (LH) aside as shown in the figure. (See MUDGUARD REMOVAL/INSTALLATION.)

ac5wzw00008017

6.  Disconnect the service plug. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

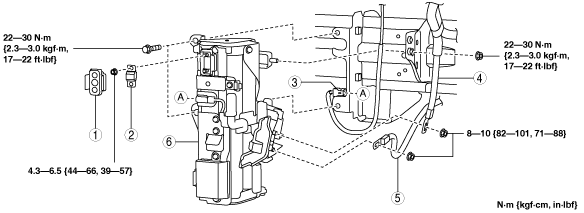

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

9.  When disposing of the capacitor (i-ELOOP), perform compulsory discharge of the capacitor before disposal. (See CAPACITOR (i-ELOOP) COMPULSORY DISCHARGE [i-ELOOP].)

10.  If the capacitor (i-ELOOP) is replaced with a new one, idle the engine to charge the capacitor.

am6zzw00012210

1
Fuse cover (for fuse removal/installation only)
2
Fuse (for fuse removal/replacement only)
3
Capacitor connector, wiring harness
4
Battery cable
5
Engine wiring harness
6
Capacitor (i-ELOOP)
(See Capacitor (i-ELOOP) installation note.)


Capacitor (i-ELOOP) installation note

1.  When replacing a capacitor (i-ELOOP) with a new one, remove the short-wire installed to the new capacitor.

am6zzw00012211

Note
•  Dispose of the removed short-wire and nuts as they are unnecessary.
