REAR OIL SEAL REPLACEMENT [SKYACTIV-D 2.2]
id0110s5800900
Special Service Tool (SST)
|
49 G033 107A
Dust cover installer
|
|
Replacement Part
|
Rear oil seal
Quantity: 1
Location of use: Cylinder block
|
Oil and Chemical Type
|
Engine oil
Type: Recommended oil
|
1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [D66M-R] (MTX, 2WD).) (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [D66MX-R] (MTX, 4WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] (ATX, 2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (SKYACTIV-D 2.2)] (ATX, 4WD).)
2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [D66M-R, D66MX-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] (ATX).)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
ac5wzw00004957
|
|
1
|
Rear oil seal
(See Rear Oil Seal Removal Note.)
|
Rear Oil Seal Removal Note
1. Cut the rear oil seal lip using a utility knife.
2. Remove the rear oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.
ac5wzw00004958
|
Rear Oil Seal Installation Note
1. Apply clean engine oil to the inner surface of a new rear oil seal.
2. Insert the rear oil seal into the cylinder block by hand.

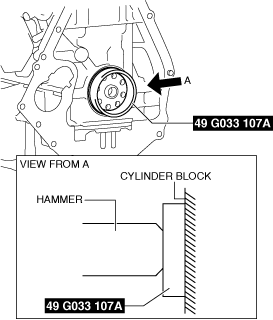

3. Tap the rear oil seal in evenly using the SST and a hammer.
ac5wzw00005234
|
ac5wzw00005277
|
