EXHAUST SYSTEM [SKYACTIV-D 2.2]

id0115z7125800

Outline

• Purifies exhaust gas via the catalytic converter, and reduces exhaust noise using the main silencer.

Structural view

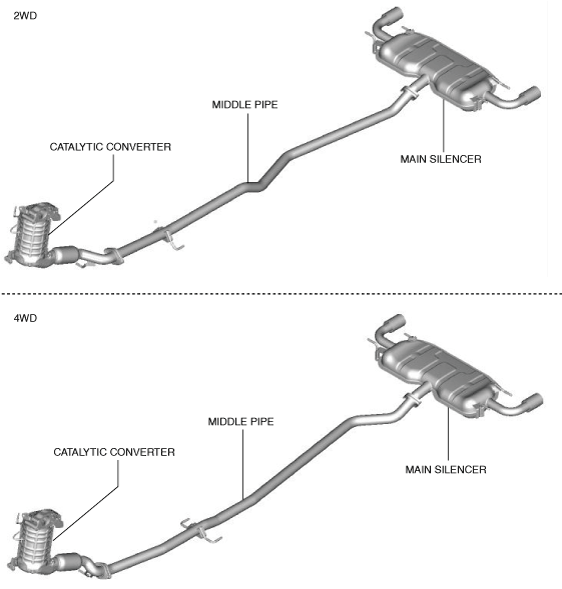

Without SCR system

ac5wzn00003880

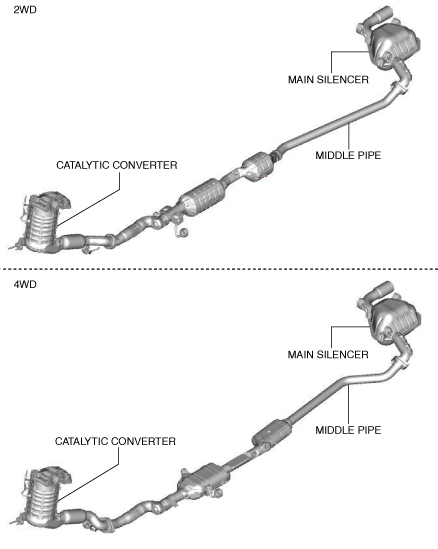

With SCR system

ac5wzn00005000

System diagram

am6zzn00005648

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Main silencer

(See MAIN SILENCER [SKYACTIV-D 2.2].)

Middle pipe

―

Catalytic converter

(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-D 2.2].)
Middle pipe	―
Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)

• Noise suppression material is employed on the inside of the catalytic converter insulator and the internal surface of the catalytic converter to reduce noise.

ac5wzn00005001
