HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]
id0740a1803600
Structural View
ac5wzw00014493
|
|
1
|
Cabin temperature sensor
|
|
2
|
Driver-side air mix actuator
|
|
3
|
Solar radiation sensor
|
|
4
|
Evaporator temperature sensor
|
|
5
|
Airflow mode actuator
|
|
6
|
Passenger-side air mix actuator
|
|
7
|
Air intake actuator
|
|
8
|
Climate control unit
|

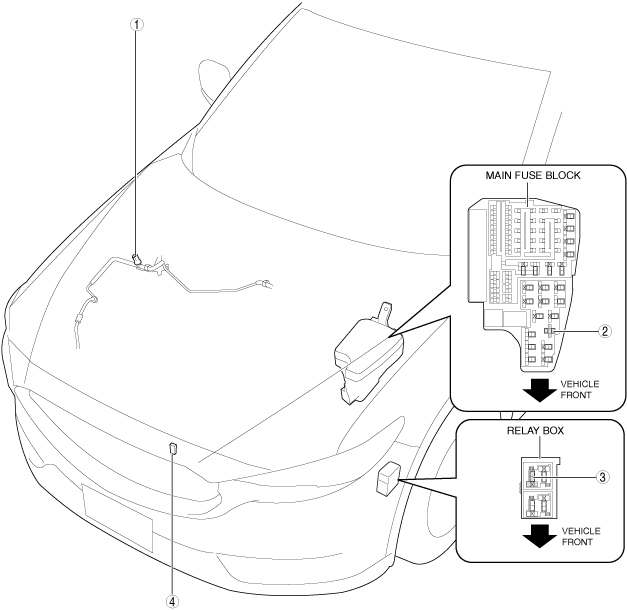

Structural View
ac5wzw00008848
|
|
1
|
Refrigerant pressure sensor
|
|
2
|
Blower relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
|
|
3
|
A/C relay
(See RELAY LOCATION.)
(See RELAY INSPECTION.)
|
|
4
|
Ambient temperature sensor
|
