REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

1. Remove the following parts:

(1) Rear fog light (with rear fog light) (See REAR FOG LIGHT REMOVAL/INSTALLATION.)

(2) Rear ultrasonic sensor short-cord (with rear ultrasonic sensor) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

(3) Rear ultrasonic sensor (with rear ultrasonic sensor) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.

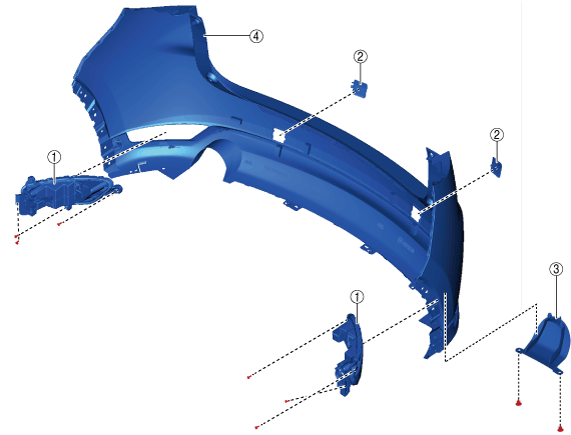

Type A

ac5wzw00011106

1

Rear reflector (without rear fog light)

2

Rear towing hook cover

3

Rear bumper guard (SKYACTIV-D 2.2 (with SCR system))

4

Rear bumper face

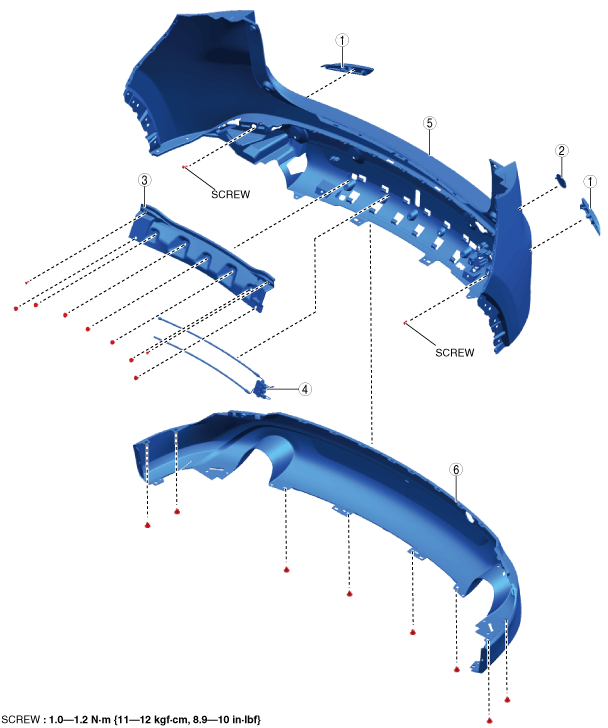

Type B

ac5uuw00012044

1

Rear reflector

2

Rear towing hook cover

3

Foot-motion detection unit bracket

4

Foot-motion detection unit

5

Rear bumper face

6

Lower rear bumper face

3. Assemble in the reverse order of disassembly.

1	Rear reflector (without rear fog light)
2	Rear towing hook cover
3	Rear bumper guard (SKYACTIV-D 2.2 (with SCR system))
4	Rear bumper face

1	Rear reflector
2	Rear towing hook cover
3	Foot-motion detection unit bracket
4	Foot-motion detection unit
5	Rear bumper face
6	Lower rear bumper face
