THEFT-DETERRENT HORN REMOVAL/INSTALLATION

id091400517500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)

(3)  Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Pull back the trunk side trim (RH) to a position which allows for the removal of the theft-deterrent horn. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

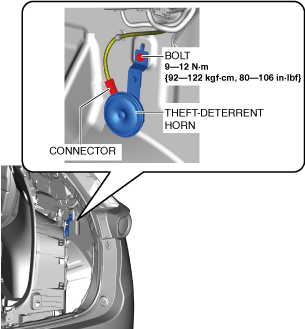

4.  Disconnect the connector.

ac5uuw00005930

5.  Remove the bolt.

6.  Remove the theft-deterrent horn.

7.  Install in the reverse order of removal.
