REMOTE TUNER (RT) REMOVAL/INSTALLATION [TYPE-B]

id0920000333zf

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(4)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(5)  Gateway unit (See GATEWAY UNIT (GWU) REMOVAL/INSTALLATION [TYPE-B].)

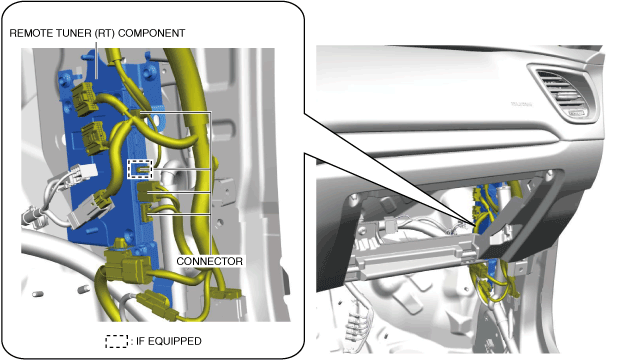

3.  Disconnect the connectors.

ac5uuw00011393

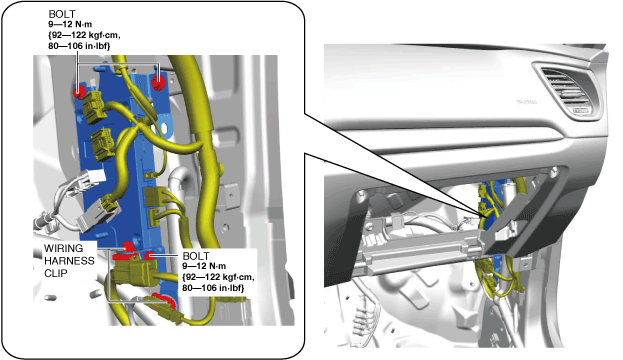

4.  Detach the wiring harness clips.

ac5uuw00011394

5.  Remove the bolts. (See Bolt Installation Note.)

6.  Remove the remote tuner (RT) component.

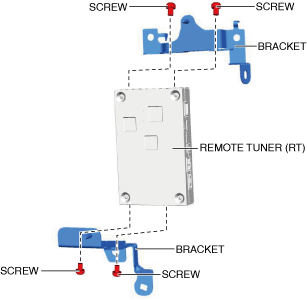

7.  Remove the screws.

ac5uuw00011395

8.  Remove the brackets.

9.  Remove the remote tuner (RT).

10.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Bonnet release lever (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

(5)  Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)

(6)  Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Gateway unit (GWU) (See GATEWAY UNIT (GWU) REMOVAL/INSTALLATION [TYPE-B].)

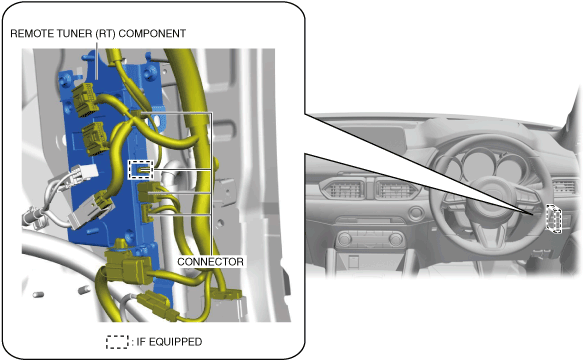

3.  Disconnect the connectors.

ac5wzw00015162

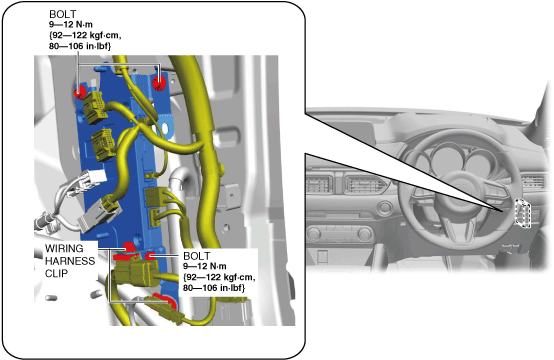

4.  Detach the wiring harness clips.

ac5wzw00015163

5.  Remove the bolts. (See Bolt Installation Note.)

6.  Remove the remote tuner (RT) component.

7.  Remove the screws.

ac5uuw00011395

8.  Remove the brackets.

9.  Remove the remote tuner (RT).

10.  Install in the reverse order of removal.

Bolt Installation Note

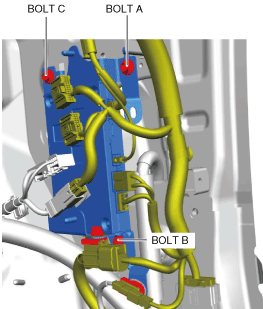

1.  Temporarily tighten bolt A.

ac5wzw00015160

2.  Tighten bolt B.

3.  Tighten bolt C.

4.  Tighten bolt A.
