GATEWAY UNIT (GWU) INSPECTION [TYPE-B]

id0940000064z4

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4) Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(5) Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(6) Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7) The nuts (See GATEWAY UNIT (GWU) REMOVAL/INSTALLATION [TYPE-B].)

3. Remove the gateway unit (GWU) from the body with the connector connected. (See GATEWAY UNIT (GWU) REMOVAL/INSTALLATION [TYPE-B].)

4. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5. Verify that the voltages of each of the terminals are as indicated in the Terminal Voltage Table (Reference).

• If the voltage is not as indicated in the table, inspect the parts under Inspection item(s).

― If the system does not launch normally even though inspection items are normal, specify the location of the malfunction based on the instructions from the on-board diagnostic system and the symptom troubleshooting, and perform repairs.

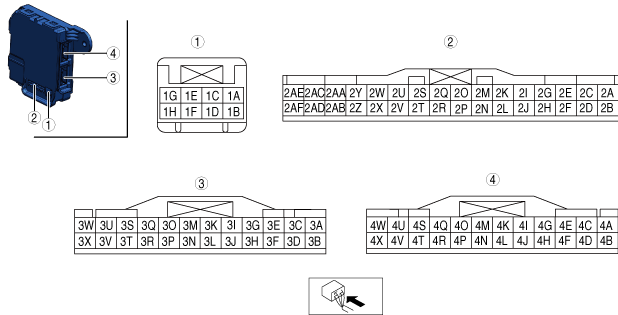

ac9uuw00011408

Terminal Voltage Table (Reference)

Terminal

Signal

Connected to

Measurement conditions

Voltage (V)

Inspection item(s)

1A

—

—

—

—

—

1B

batt1_limphome

AT 15 A fuse

Under any condition

B+

•  AT 15 A fuse

•  Related wiring harness

1C

—

—

—

—

—

1D

batt2_room

AT 15 A fuse

Under any condition

B+

•  AT 15 A fuse

•  Related wiring harness

1E

—

—

—

—

—

1F

—

—

—

—

—

1G

—

—

—

—

—

1H

—

—

—

—

—

2A

—

—

—

—

—

2B

—

—

—

—

—

2C

—

—

—

—

—

2D

—

—

—

—

—

2E

—

—

—

—

—

2F

CAN_L_PT

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

2G

—

—

—

—

—

2H

CAN_H_PT

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

2I

2J

CAN_L_BODY_FRONT

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

2K

—

—

—

—

—

2L

CAN_H_BODY_FRONT

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

2M

—

—

—

—

—

2N

—

—

—

—

—

2O

—

—

—

—

—

2P

—

—

—

—

—

2Q

—

—

—

—

—

2R

—

—

—

—

—

2S

—

—

—

—

—

2T

—

—

—

—

—

2U

—

—

—

—

—

2V

—

—

—

—

—

2W

—

—

—

—

—

2X

—

—

—

—

—

2Y

Signal ground

Body ground

Under any condition

1.0 or less

Related wiring harness

2Z

—

—

—

—

—

2AA

—

—

—

—

—

2AB

—

—

—

—

—

2AC

—

—

—

—

—

2AD

—

—

—

—

—

2AE

—

—

—

—

—

2AF

—

—

—

—

—

3A

—

—

—

—

—

3B

—

—

—

—

—

3C

—

—

—

—

—

3D

—

—

—

—

—

3E

—

—

—

—

—

3F

—

—

—

—

—

3G

—

—

—

—

—

3H

—

—

—

—

—

3I

—

—

—

—

—

3J

—

—

—

—

—

3K

—

—

—

—

—

3L

—

—

—

—

—

3M

—

—

—

—

—

3N

—

—

—

—

—

3O

—

—

—

—

—

3P

—

—

—

—

—

3Q

—

—

—

—

—

3R

—

—

—

—

—

3S

CAN_L_DIAG

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

3T

CAN_H_DIAG

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

3U^*1

CAN_L_DCM

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

3V^*1

CAN_H_DCM

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

3W

CAN_L_VEHICLE

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

3X

CAN_H_VEHICLE

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

4A

—

—

—

—

—

4B

—

—

—

—

—

4C

—

—

—

—

—

4D

—

—

—

—

—

4E

—

—

—

—

—

4F

—

—

—

—

—

4G

—

—

—

—

—

4H

—

—

—

—

—

4I

—

—

—

—

—

4J

—

—

—

—

—

4K

—

—

—

—

—

4L

—

—

—

—

—

4M

—

—

—

—

—

4N

—

—

—

—

—

4O

—

—

—

—

—

4P

—

—

—

—

—

4Q

CAN_L_IVI

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

4R

CAN_H_IVI

CAN system related module

Terminal used for communication therefore determination based on terminal voltage is not possible.

4S

—

—

—

—

—

4T

Signal ground

Body ground

Under any condition

1.0 or less

Related wiring harness

4U

—

—

—

—

—

4V

—

—

—

—

—

4W

—

—

—

—

—

4X

—

—

—

—

—

Terminal	Signal	Connected to	Measurement conditions	Voltage (V)	Inspection item(s)
1A	—	—	—	—	—
1B	batt1_limphome	AT 15 A fuse	Under any condition	B+	• AT 15 A fuse • Related wiring harness
1C	—	—	—	—	—
1D	batt2_room	AT 15 A fuse	Under any condition	B+	• AT 15 A fuse • Related wiring harness
1E	—	—	—	—	—
1F	—	—	—	—	—
1G	—	—	—	—	—
1H	—	—	—	—	—
2A	—	—	—	—	—
2B	—	—	—	—	—
2C	—	—	—	—	—
2D	—	—	—	—	—
2E	—	—	—	—	—
2F	CAN_L_PT	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
2G	—	—	—	—	—
2H	CAN_H_PT	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
2I
2J	CAN_L_BODY_FRONT	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
2K	—	—	—	—	—
2L	CAN_H_BODY_FRONT	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
2M	—	—	—	—	—
2N	—	—	—	—	—
2O	—	—	—	—	—
2P	—	—	—	—	—
2Q	—	—	—	—	—
2R	—	—	—	—	—
2S	—	—	—	—	—
2T	—	—	—	—	—
2U	—	—	—	—	—
2V	—	—	—	—	—
2W	—	—	—	—	—
2X	—	—	—	—	—
2Y	Signal ground	Body ground	Under any condition	1.0 or less	Related wiring harness
2Z	—	—	—	—	—
2AA	—	—	—	—	—
2AB	—	—	—	—	—
2AC	—	—	—	—	—
2AD	—	—	—	—	—
2AE	—	—	—	—	—
2AF	—	—	—	—	—
3A	—	—	—	—	—
3B	—	—	—	—	—
3C	—	—	—	—	—
3D	—	—	—	—	—
3E	—	—	—	—	—
3F	—	—	—	—	—
3G	—	—	—	—	—
3H	—	—	—	—	—
3I	—	—	—	—	—
3J	—	—	—	—	—
3K	—	—	—	—	—
3L	—	—	—	—	—
3M	—	—	—	—	—
3N	—	—	—	—	—
3O	—	—	—	—	—
3P	—	—	—	—	—
3Q	—	—	—	—	—
3R	—	—	—	—	—
3S	CAN_L_DIAG	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
3T	CAN_H_DIAG	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
3U^*1	CAN_L_DCM	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
3V^*1	CAN_H_DCM	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
3W	CAN_L_VEHICLE	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
3X	CAN_H_VEHICLE	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
4A	—	—	—	—	—
4B	—	—	—	—	—
4C	—	—	—	—	—
4D	—	—	—	—	—
4E	—	—	—	—	—
4F	—	—	—	—	—
4G	—	—	—	—	—
4H	—	—	—	—	—
4I	—	—	—	—	—
4J	—	—	—	—	—
4K	—	—	—	—	—
4L	—	—	—	—	—
4M	—	—	—	—	—
4N	—	—	—	—	—
4O	—	—	—	—	—
4P	—	—	—	—	—
4Q	CAN_L_IVI	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
4R	CAN_H_IVI	CAN system related module	Terminal used for communication therefore determination based on terminal voltage is not possible.
4S	—	—	—	—	—
4T	Signal ground	Body ground	Under any condition	1.0 or less	Related wiring harness
4U	—	—	—	—	—
4V	—	—	—	—	—
4W	—	—	—	—	—
4X	—	—	—	—	—

*1 :With telematics control unit
