FUEL SYSTEM LOCATION INDEX [L3 Turbo]

id0114b4800100

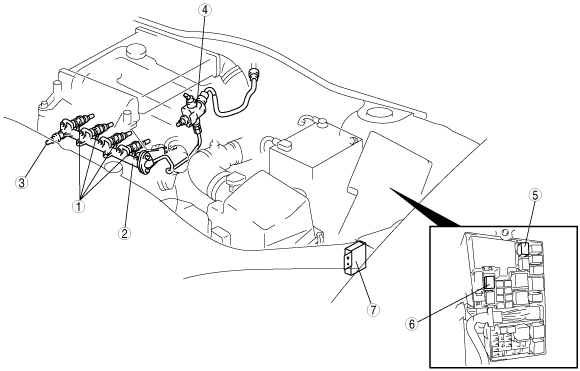

Engine Room Side

acxaaw00000358

1	Fuel injector (SeeFUEL INJECTOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeFUEL INJECTOR INSPECTION [L3 Turbo].)
2	Fuel delivery pipe (SeeFUEL INJECTOR REMOVAL/INSTALLATION [L3 Turbo].)
3	Fuel pressure sensor (SeeFUEL PRESSURE SENSOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeFUEL PRESSURE SENSOR INSPECTION [L3 Turbo].)
4	High pressure fuel pump (SeeHIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [L3 Turbo].) (SeeHIGH PRESSURE FUEL PUMP INSPECTION [L3 Turbo].)
5	Fuel pump relay
6	Fuel pump speed control relay
7	Fuel pump resistor (SeeFUEL PUMP RESISTOR REMOVAL/INSTALLATION [L3 Turbo].) (SeeFUEL PUMP RESISTOR INSPECTION [L3 Turbo].)

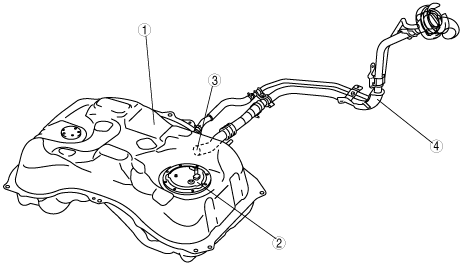

Fuel Tank Side

acxaaw00000131

1	Fuel tank (SeeFUEL TANK REMOVAL/INSTALLATION [L3 Turbo].)
2	Fuel pump unit (SeeFUEL PUMP UNIT REMOVAL/INSTALLATION [L3 Turbo].) (SeeFUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [L3 Turbo].) (SeeFUEL PUMP UNIT INSPECTION [L3 Turbo].)
3	Nonreturn valve
4	Fuel filler pipe
