FRONT STABILIZER REMOVAL/INSTALLATION

id021300800400

1.  Remove the side cover and under cover.

2.  Drain the power steering fluid. (See POWER STEERING FLUID INSPECTION.)

3.  Disconnect the front auto leveling sensor connector. (Vehicle with headlight auto leveling system) (See FRONT AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

4.  Remove the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION.)

5.  Remove the front crossmember component. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [L.H.D.].) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [R.H.D.].)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

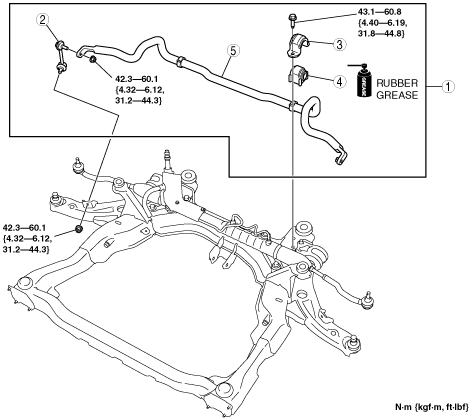

acxuuw00001098

1	Front stabilizer component
2	Front stabilizer control link
3	Stabilizer bracket (See Stabilizer Bracket Installation Note)
4	Stabilizer bushing (See Stabilizer Bushing Installation Note)
5	Front stabilizer (See Front Stabilizer Installation Note)

Front Stabilizer Installation Note

1.  Install the stabilizer bar so that the identification mark is on the left side of the vehicle.

acxuuw00001099

Stabilizer Bushing Installation Note

1.  Align the outer side of the positioning plate with the stabilizer bushing.

acxuuw00001100

Stabilizer Bracket Installation Note

1.  Install the stabilizer bracket so that the arrow is pointed to the front.

ampjjw00000547
