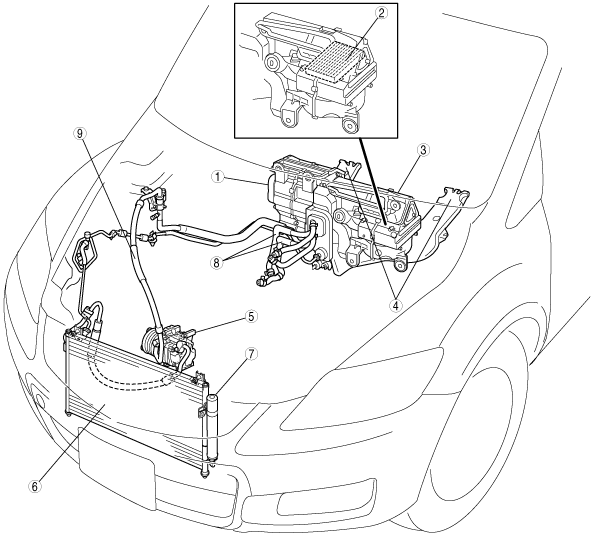

HVAC BASIC SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]

id0711a2800100

acxaaw00000564

1	A/C unit (See A/C UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See A/C UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
2	Air filter (See AIR FILTER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See AIR FILTER INSPECTION [MANUAL AIR CONDITIONER].)
3	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER].)
4	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
5	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
6	Condenser (See CONDENSER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].) (See CONDENSER INSPECTION [MANUAL AIR CONDITIONER].)
7	Receiver/drier (See RECEIVER/DRIER REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
8	Heater hose
9	Refrigerant lines (See REFRIGERANT LINE REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
