FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000801000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Windshield wiper arm and blade (SeeWINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

(2)  Cowl grill (SeeCOWL GRILLE REMOVAL/INSTALLATION)

(3)  Front bumper (SeeFRONT BUMPER DISASSEMBLY/ASSEMBLY)

(4)  Head lights (SeeHEADLIGHT REMOVAL/INSTALLATION)

(5)  Side step molding (SeeSIDE STEP MOLDING REMOVAL)

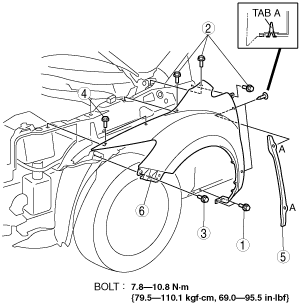

3.  Remove in the order indicated in the table.

acxuuw00001316

1	Bolt A
2	Bolt B
3	Bolt C
4	Bolt D
5	Seal plate
6	Front fender panel

4.  Install in the reverse order of removal.
