POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION

id091200802100

Passenger’s Side

1.  Disconnect the negative battery cable.

2.  Remove the inner garnish. (Passenger’s side) (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (Passenger’s side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION)

4.  Disconnect the power window subswitch connector.

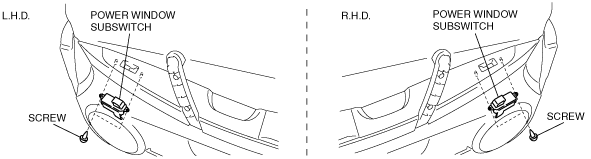

5.  Remove the screws, then the power window subswitch.

acxaaw00000999

6.  Install in the reverse order of removal.

Rear Side

1.  Disconnect the negative battery cable.

2.  Remove the sail garnish. (See SAIL GARNISH REMOVAL/INSTALLATION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION)

4.  Disconnect the power window subswitch connector.

5.  Remove the screws, then the power window subswitch.

acxuuw00001183

6.  Install in the reverse order of removal.
