FRONT SEAT DISASSEMBLY/ASSEMBLY

id091300800300

Warning
•  Handling the front seats improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seats. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Disconnect the negative battery cable and wait for more than 1 minute.

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of disassembly.


Driver's Seat (Manual Seat)

L.H.D.

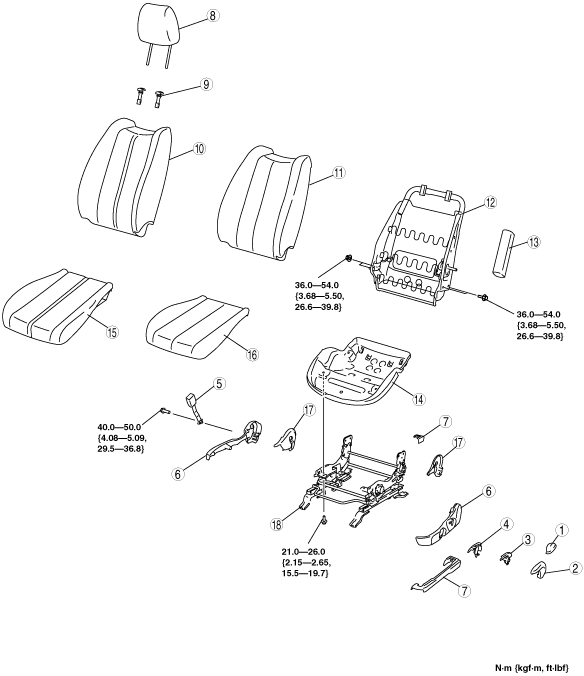

acxaaw00001618

R.H.D.

acxaaw00000033

1
Recliner lever
2
Outer lift cover
3
Lifter lever
4
Inner lift cover
5
Front buckle
6
Side cover
7
Rail cover
8
Headrest
9
Pole guide
10
Seat back trim
11
Seat back pad
12
Seat back frame
13
Side air bag module
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
14
Seat cushion frame
15
Seat cushion trim
16
Seat cushion pad
17
Reverse cover
18
Slide adjuster


Driver's Seat (Power Seat)

L.H.D.

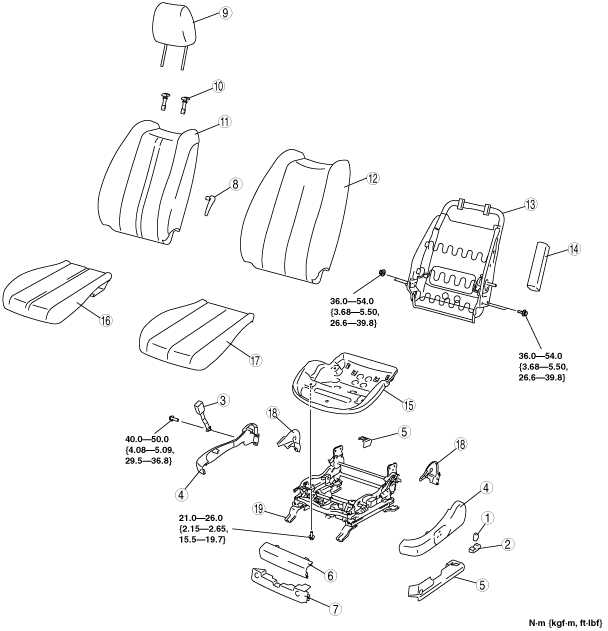

acxaaw00001619

R.H.D.

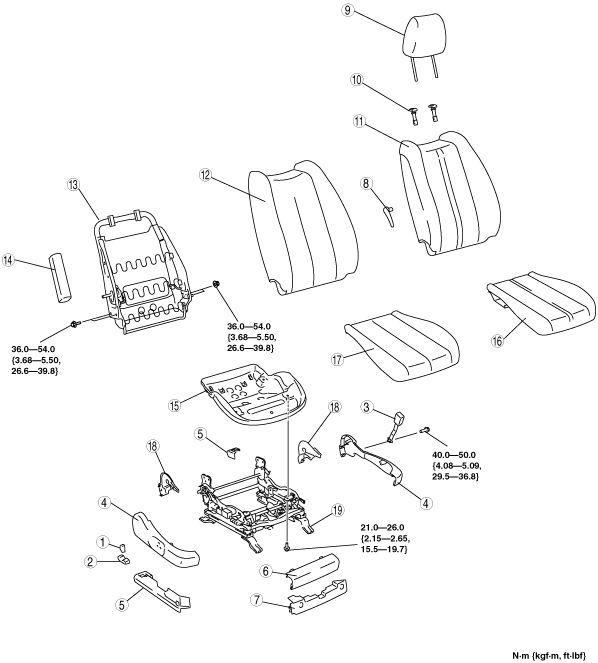

acxaaw00000034

1
Recliner switch knob
2
Slide and lifter switch knob
3
Front buckle
4
Side cover
5
Rail cover
6
Front cover No.1
7
Front cover No.2
8
Lumber support lever
(See Lumber support lever disassembly note)
9
Headrest
10
Pole guide
11
Seat back trim
12
Seat back pad
13
Seat back frame
14
Side air bag module
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
15
Seat cushion frame
16
Seat cushion trim
17
Seat cushion pad
18
Reverse cover
19
Slide adjuster


Lumber support lever disassembly note

1.  Remove the pin from the lumber support lever installation part with rag.

L.H.D.

acxaaw00001531

R.H.D.

acxaaw00000035


Passenger's Seat

L.H.D.

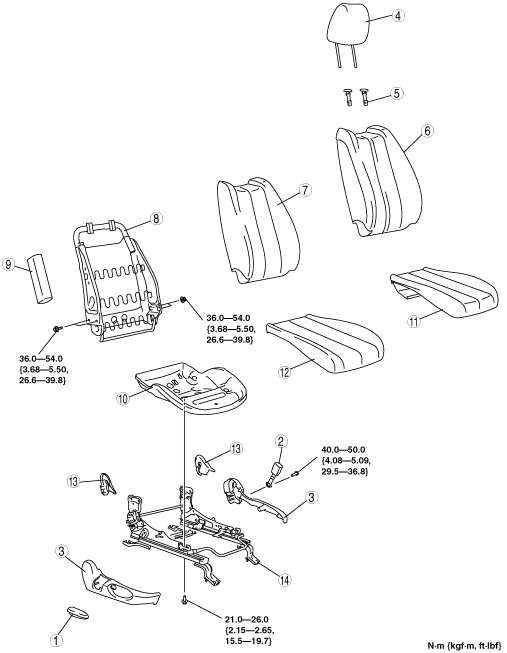

acxaaw00001251

R.H.D.

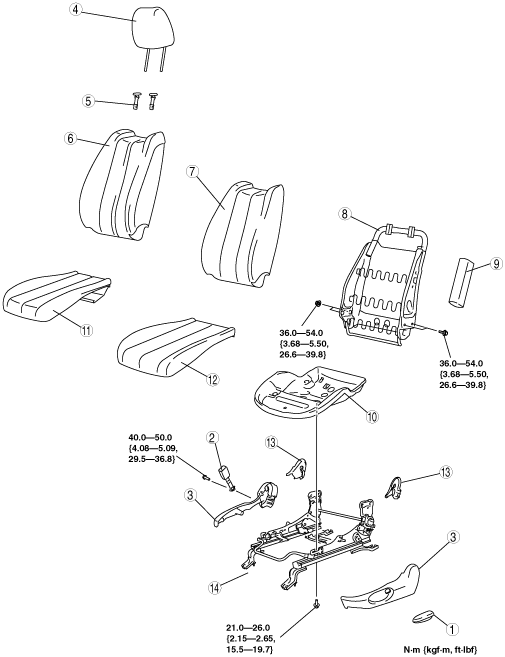

acxaaw00001252

1
Recliner lever
2
Front buckle
3
Side cover
4
Headrest
5
Pole guide
6
Seat back trim
7
Seat back pad
8
Seat back frame
9
Side air bag module
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
10
Seat cushion frame
11
Seat cushion trim
12
Seat cushion pad
13
Reverse cover
14
Slide adjuster
