TRUNK SIDE TRIM REMOVAL/INSTALLATION

id091700803100

1.  Remove the following parts:

(1)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(2)  Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Sub trunk box (See SUB TRUNK BOX REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2.  Remove the screw.

acxuuw00000883

3.  Pull the remote handle lever outward and detach clip A.

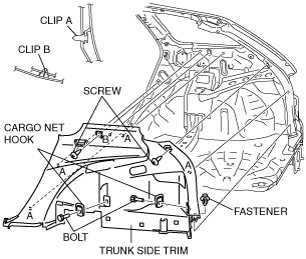

4.  Remove the screws and the fastener.

acxaaw00001548

5.  Remove the bolt, then remove the cargo net hook.

6.  Pull the trunk side trim outward and detach clips A and B.

7.  Remove the trunk side trim.

8.  Install in the reverse order of removal.
