DTC P0032:00 [PCM (SKYACTIV-D 2.2)]

id0102j5700500

DTC P0032:00

A/F sensor heater control circuit high input

DETECTION CONDITION

•  With the following conditions met, a condition is detected by the PCM for 5 s in which the voltage while the A/F sensor heater is operating or not operating is the specified value or more.

―  Battery positive voltage: 10 V or more

―  A/F sensor heater control duty value: 10 % or more

Diagnostic support note

•  This is an intermittent monitor (A/F sensor).

•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Limits engine torque.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the EGR control.

POSSIBLE CAUSE

•  A/F sensor connector or terminal malfunction

•  A/F sensor heater malfunction

•  PCM connector or terminal malfunction

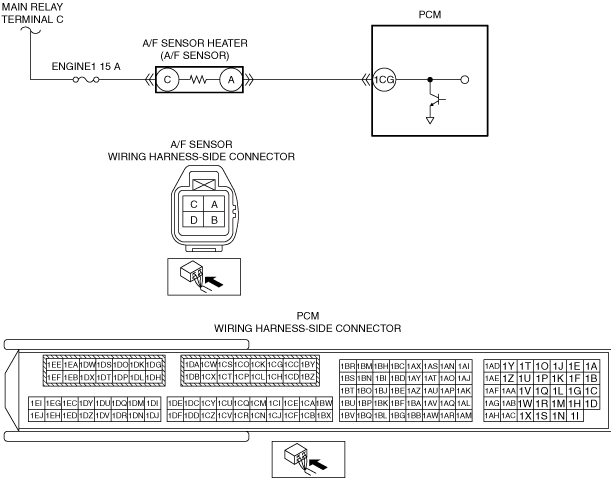

•  Short to power supply in wiring harness between A/F sensor terminal A and PCM terminal 1CG

•  PCM malfunction

DTC P0032:00	A/F sensor heater control circuit high input
DETECTION CONDITION	• With the following conditions met, a condition is detected by the PCM for 5 s in which the voltage while the A/F sensor heater is operating or not operating is the specified value or more. ― Battery positive voltage: 10 V or more ― A/F sensor heater control duty value: 10 % or more Diagnostic support note • This is an intermittent monitor (A/F sensor). • The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Limits engine torque. • Inhibits the automatic diesel particulate filter regeneration control. • Inhibits the manual diesel particulate filter regeneration control. • Inhibits the EGR control.
POSSIBLE CAUSE	• A/F sensor connector or terminal malfunction • A/F sensor heater malfunction • PCM connector or terminal malfunction • Short to power supply in wiring harness between A/F sensor terminal A and PCM terminal 1CG • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

INSPECT A/F SENSOR CONNECTOR CONNECTION

•  Switch the ignition OFF.

•  Disconnect the A/F sensor connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 6.

3

INSPECT A/F SENSOR HEATER

•  Inspect the A/F sensor heater.
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2])

•  Is the A/F sensor heater normal?

Yes

Go to the next step.

No

Replace the A/F sensor, then go to Step 6.

(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

4

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 6.

5

INSPECT A/F SENSOR HEATER CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Verify that the A/F sensor connector and the PCM connector are disconnected.

•  Switch the ignition ON (engine off).

Note

•  Another DTC may be stored by the PCM detecting an open circuit.

•  Measure the voltage at A/F sensor terminal A (vehicle wiring harness side).

•  Is the voltage 0 V?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between A/F sensor terminal A and PCM terminal 1CG.

If there is a common connector:

•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location.

•  Repair or replace the malfunctioning location.

If there is no common connector:

•  Repair or replace the wiring harness which is shorted to the power supply.

Go to the next step.

6

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)])

•  Start the engine and warm it up.

•  Stop all electrical loads. (Such as A/C, headlights, blower fan, rear window defroster)

•  Drive the vehicle on flat roads under the following conditions 5 times repeatedly.

1.  After the engine is started, idle the engine for 30 s.

2.  Accelerate in 2nd gear to 35 km/h and drive the vehicle while maintaining the speed for 25 s.

3.  Stop the vehicle, switch the ignition OFF, and wait for 20 s.

4.  Accelerate in 3rd gear to 50 km/h and drive the vehicle while maintaining the speed for 50 s.

5.  Stop the vehicle and idle the engine for 20 s.

•  Stop the engine.

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)])

•  Has DTC P0032:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

No

Go to the next step.

7

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)])

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION Note • Recording can be facilitated using the screen capture function of the PC. • Record the freeze frame data/snap shot data.	—	Go to the next step.
2	INSPECT A/F SENSOR CONNECTOR CONNECTION • Switch the ignition OFF. • Disconnect the A/F sensor connector. • Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 6.
3	INSPECT A/F SENSOR HEATER • Inspect the A/F sensor heater. (See AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2]) • Is the A/F sensor heater normal?	Yes	Go to the next step.
3		No	Replace the A/F sensor, then go to Step 6. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
4	INSPECT PCM CONNECTOR CONDITION • Disconnect the PCM connector. • Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 6.
5	INSPECT A/F SENSOR HEATER CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY • Verify that the A/F sensor connector and the PCM connector are disconnected. • Switch the ignition ON (engine off). Note • Another DTC may be stored by the PCM detecting an open circuit. • Measure the voltage at A/F sensor terminal A (vehicle wiring harness side). • Is the voltage 0 V?	Yes	Go to the next step.
5		No	Refer to the wiring diagram and verify if there is a common connector between A/F sensor terminal A and PCM terminal 1CG. If there is a common connector: • Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to power supply to determine the malfunctioning location. • Repair or replace the malfunctioning location. If there is no common connector: • Repair or replace the wiring harness which is shorted to the power supply. Go to the next step.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC. (See CLEARING DTC [PCM (SKYACTIV-D 2.2)]) • Start the engine and warm it up. • Stop all electrical loads. (Such as A/C, headlights, blower fan, rear window defroster) • Drive the vehicle on flat roads under the following conditions 5 times repeatedly. 1. After the engine is started, idle the engine for 30 s. 2. Accelerate in 2nd gear to 35 km/h and drive the vehicle while maintaining the speed for 25 s. 3. Stop the vehicle, switch the ignition OFF, and wait for 20 s. 4. Accelerate in 3rd gear to 50 km/h and drive the vehicle while maintaining the speed for 50 s. 5. Stop the vehicle and idle the engine for 20 s. • Stop the engine. • Display the DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)]) • Has DTC P0032:00 been recorded?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])
6		No	Go to the next step.
7	VERIFY OTHER DTCs • Has any other DTC or pending code been stored?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-D 2.2)])
7		No	DTC troubleshooting completed.
