AIR FUEL RATIO (A/F) SENSOR INSPECTION [SKYACTIV-D 2.2]

id0140z7899600

PID/DATA Monitor Inspection (A/F Sensor)

1.  Connect the M-MDS to the DLC-2.

2.  Start the engine and warm it up completely.

3.  Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  VSS (Vehicle speed)

•  RPM (Engine speed)

•  O2S11 (A/F sensor output current)

4.  Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 rpm or more.

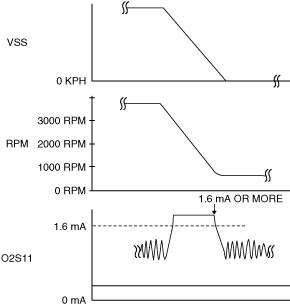

5.  Verify that the A/F sensor output current (PID: O2S11) is 1.6 mA or more while decelerating as shown in the figure.

ac5wzw00009864

•  If not as verified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

Resistance Inspection (A/F Sensor Heater)

Warning

•  A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Turn the steering wheel to full right lock.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Lift up the vehicle.

4.  Remove the front under cover No.2. (2WD)(See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

5.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

6.  Disconnect the A/F sensor connector.

7.  Measure the resistance between A/F sensor terminals A and C.

ac8wzw00003155

•  If not as specified, replace the A/F sensor. (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
