DTC P0116:00 [PCM (SKYACTIV-G 2.5)]
id0102j9146800
Details On DTCs
|
DESCRIPTION |
ECT sensor No.1 circuit range/performance problem |
|
|---|---|---|
|
DETECTION CONDITION
|
Determination conditions
|
• During the 5 min after the engine is started, the engine coolant temperature does not increase above 0.7 °C {33 °F}.
|
|
Preconditions
|
• Before starting the engine, leave the vehicle with the engine turned off for 6 hours or more.
• The following DTCs are not detected:
|
|
|
Drive cycle
|
• 1
|
|
|
Self test type
|
• CMDTC self test
|
|
|
Sensor used
|
• ECT sensor No.1
|
|
|
FAIL-SAFE FUNCTION
|
• Not applicable
|
|
|
VEHICLE STATUS WHEN DTCs ARE OUTPUT
|
• The check engine light may be illuminated depending on the condition. (Stage 5 only)
|
|
|
POSSIBLE CAUSE
|
• ECT sensor No.1 connector or terminals malfunction
• PCM connector or terminals malfunction
• ECT sensor No.1 loose
• ECT sensor No.1 malfunction
• Poor assembly of engine coolant hose (engine coolant passage malfunction)
• Poor engine coolant, leakage, or freezing
• Use of unspecified engine coolant
• Coolant control valve malfunction
• PCM malfunction
|
|
System Wiring Diagram

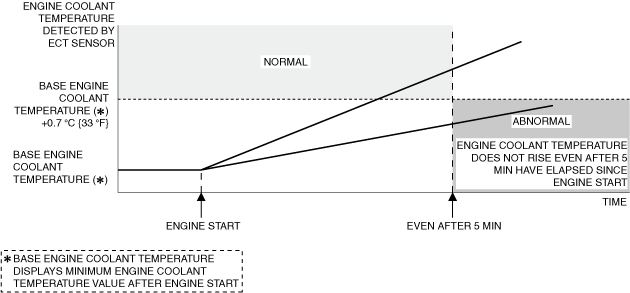

Function Explanation (DTC Detection Outline)
ac5wzw00012759
|
Repeatability Verification Procedure
PID Item/Simulation Item Used In Diagnosis
PID/DATA monitor item table
|
Item |
Definition |
Unit |
Condition/Specification |
|---|---|---|---|
|
ECT
|
Engine coolant temperature input from ECT sensor No.1
|
°C, °F
|
• Displays ECT
|
|
ECT sensor No.1 voltage
|
V
|
• ECT is 20 °C {68 °F}: Approx. 3.10 V
• ECT is 40 °C {104 °F}: Approx. 2.16 V
• ECT is 60 °C {140 °F}: Approx. 1.40 V
• ECT is 80 °C {176 °F}: Approx. 0.87 V
• ECT is 100 °C {212 °F}: Approx. 0.54 V
|
Function Inspection Using M-MDS
|
STEP |
INSPECTION |
RESULTS |
ACTION |
|---|---|---|---|
|
1
|
PURPOSE: VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
2
|
PURPOSE: RECORD VEHICLE STATUS AT TIME OF DTC DETECTION TO UTILIZE WITH REPEATABILITY VERIFICATION
• Record the FREEZE FRAME DATA/snapshot data on the repair order.
|
—
|
Go to the next step.
|
|
3
|
PURPOSE: VERIFY CONNECTOR CONNECTIONS
• Start the engine.
• Access the ECT PID using the M-MDS.
• Does the PID value fluctuate when the PCM and ECT sensor No.1 connectors are shaken?
|
Yes
|
Repair or replace the applicable connector parts.
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 7.
|
|
No
|
Go to the next step.
|
||
|
4
|
PURPOSE: VERIFY ECT SENSOR NO.1 INPUT SIGNAL
• Access the ECT PID using the M-MDS.
• Is the PID value within specification?
|
Yes
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 3.
|
|
No
|
Go to Troubleshooting Diagnostic Procedure to perform the procedure from Step 1.
|
Troubleshooting Diagnostic Procedure
|
STEP |
INSPECTION |
RESULTS |
ACTION |
|---|---|---|---|
|
1
|
PURPOSE: INSPECT INSTALLATION OF ECT SENSOR NO.1
• Inspect installation of ECT sensor No.1.
• Is the ECT sensor No.1 installed securely?
|
Yes
|
Go to the next step.
|
|
No
|
Retighten the ECT sensor No.1, then go to Step 7.
|
||
|
2
|
PURPOSE: DETERMINE INTEGRITY OF ECT SENSOR NO.1
• Inspect the ECT sensor No.1.
• Is there any malfunction?
|
Yes
|
Replace the ECT sensor No.1, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
3
|
PURPOSE: VERIFY IF MALFUNCTION CAUSED BY POOR ENGINE COOLANT PASSAGE ASSEMBLY
• Verify the connection condition of the engine coolant passage (such as hoses).
• Is there any malfunction?
|
Yes
|
Reconnect the engine coolant passage correctly.
Replace the engine coolant, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
4
|
PURPOSE: VERIFY IF MALFUNCTION RELATED TO ENGINE COOLANT AFFECTS DIAGNOSTIC RESULTS
• Inspect the following:
• Are all items normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the engine coolant, then go to Step 7. (Advise the customer to use specified engine coolant used.)
|
||
|
5
|
PURPOSE: VERIFY IF MALFUNCTION RELATED TO ENGINE COOLANT LEAKAGE FROM ENGINE COOLANT PASSAGE AFFECTS DIAGNOSTIC RESULTS
• Perform the “ENGINE COOLANT LEAKAGE INSPECTION”.
• Is there engine coolant leaking from the engine coolant passage?
|
Yes
|
Repair or replace the malfunctioning location and refill the system with engine coolant.
Go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
6
|
PURPOSE: DETERMINE INTEGRITY OF COOLANT CONTROL VALVE
• Inspect the coolant control valve.
• Is there any malfunction?
|
Yes
|
Replace the coolant control valve, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
PURPOSE: VERIFICATION OF VEHICLE REPAIR COMPLETION
• Always reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Implement the repeatability verification procedure.
• Perform the DTC Reading Procedure.
• Is the same Pending DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
PURPOSE: VERIFY IF THERE IS ANY OTHER MALFUNCTION
• Is any other DTC or pending code stored?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
