COOLING SYSTEM LOCATION INDEX [SKYACTIV-G 2.5]

id0112h5800100

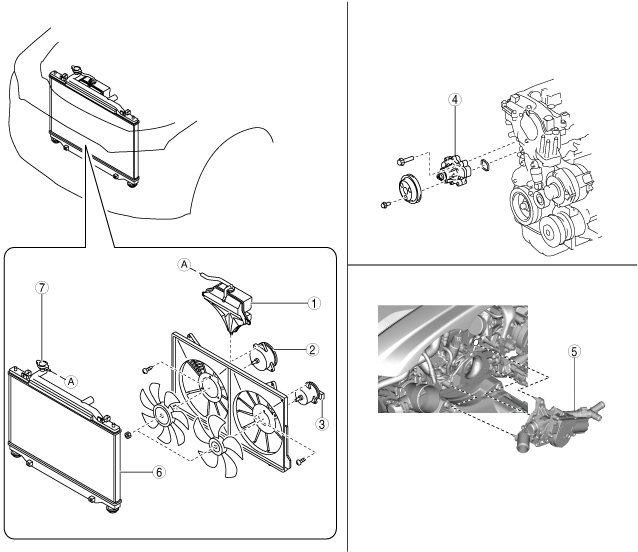

ac8wzw00003593

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION [SKYACTIV-G 2.5].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
2	Cooling fan motor No.2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.5].)
3	Cooling fan motor No.1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G 2.5].)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
5	Coolant control valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G 2.5].)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G 2.5].) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5].) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5].) (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
7	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G 2.5].)
