COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

3.  Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2])

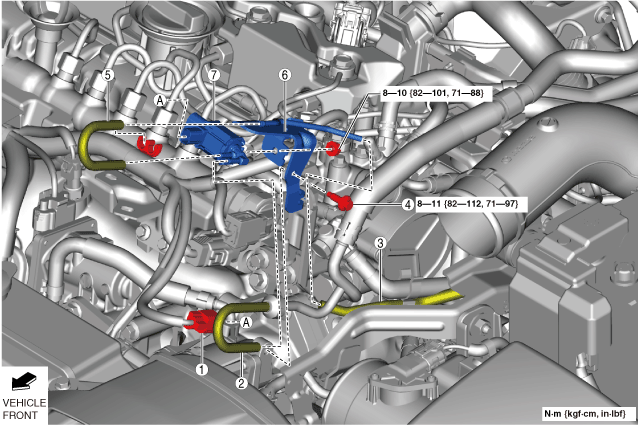

4.  Remove in the order shown in the figure.

5.  Install in the reverse order of removal.

ac8wzw00002640

1	Compressor bypass solenoid valve connector
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note)
3	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note)
4	Compressor bypass solenoid valve bracket bolt
5	Vacuum hose No.4 (See Vacuum Hose No.4 Installation Note)
6	Vacuum pipe bracket
7	Compressor bypass solenoid valve

Vacuum Hose No.4 Installation Note

1.  Install vacuum hose No.4 as shown in the figure.

Compressor bypass solenoid valve side

ac8wzw00002641

Vacuum pipe bracket side

ac8wzw00002642

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

ac8wzw00002643

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

ac8wzw00002644
