CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7266000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

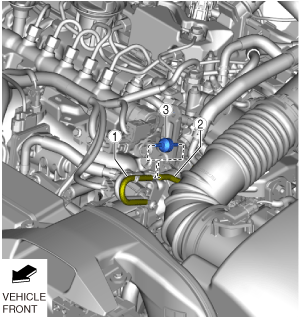

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal.

ac8wzw00002645

1	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note.)
2	Vacuum hose No.2 (See Vacuum Hose No.2 Installation Note.)
3	Check valve (See Check Valve Installation Note.)

Check Valve Installation Note

1.  Install the check valve as shown in the figure.

ac8wzw00002646

Vacuum Hose No.2 Installation Note

1.  Install vacuum hose No.2 as shown in the figure.

ac8wzw00002647

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

ac8wzw00002648
