FUEL SYSTEM [SKYACTIV-G 2.5]

Part/System name	Reference

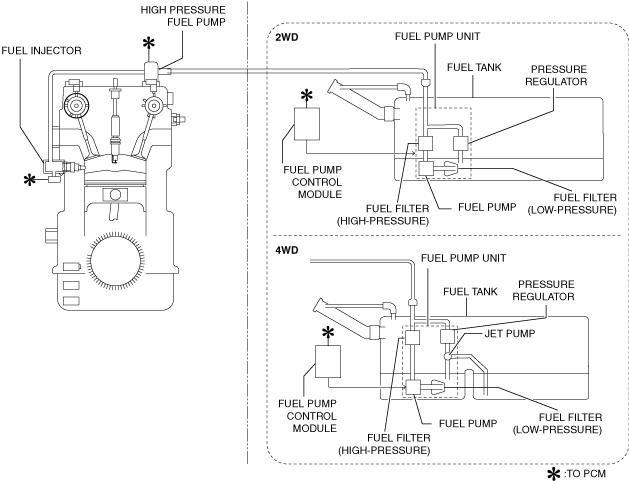

Return-less fuel system (See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5].)	Fuel pump unit	(See FUEL PUMP UNIT [SKYACTIV-G 2.5].)

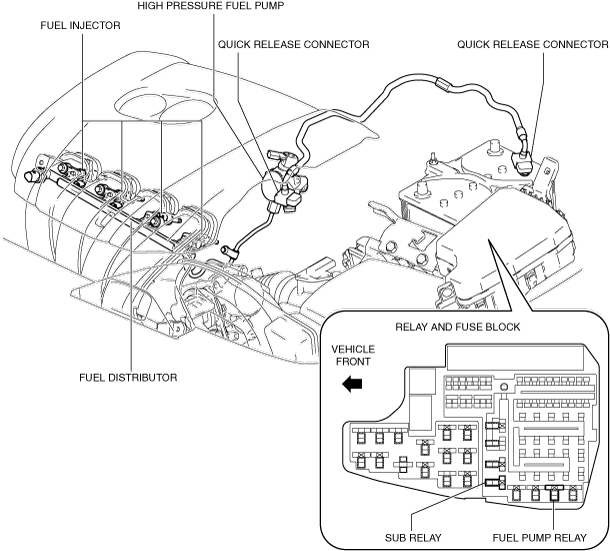

Direct fuel injection system (See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5].)	High pressure fuel pump	(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5].)
Fuel distributor	(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5].)
Fuel injector	(See FUEL INJECTOR [SKYACTIV-G 2.5].)

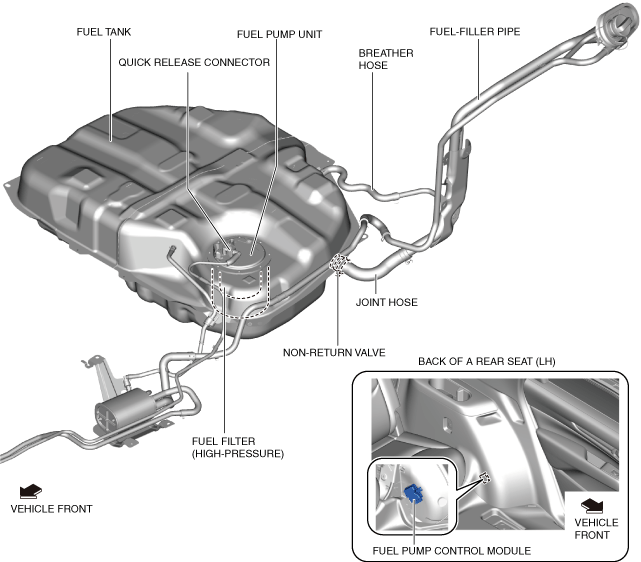

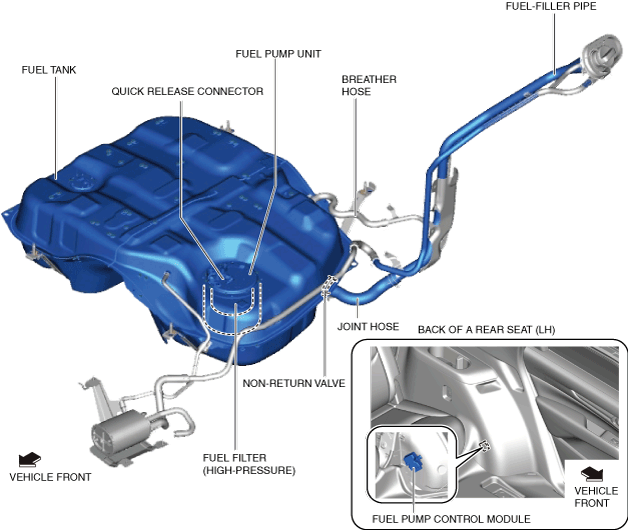

Fuel tank	(See FUEL TANK [SKYACTIV-G 2.5].)
Non-return valve	(See NON-RETURN VALVE [SKYACTIV-G 2.5].)
Fuel pump relay	(See FUEL PUMP RELAY [SKYACTIV-G 2.5].)
Sub relay	(See SUB RELAY [SKYACTIV-G 2.5].)
Fuel pump control module	(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5].)
Quick connector (fuel system)	(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.5].)

Part/System name

Reference

Return-less fuel system

(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5].)

Fuel pump unit

(See FUEL PUMP UNIT [SKYACTIV-G 2.5].)

Direct fuel injection system

(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5].)

High pressure fuel pump

(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5].)

Fuel distributor

(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5].)

Fuel injector

(See FUEL INJECTOR [SKYACTIV-G 2.5].)

Fuel tank

(See FUEL TANK [SKYACTIV-G 2.5].)

Non-return valve

(See NON-RETURN VALVE [SKYACTIV-G 2.5].)

Fuel pump relay

(See FUEL PUMP RELAY [SKYACTIV-G 2.5].)

Sub relay

(See SUB RELAY [SKYACTIV-G 2.5].)

Fuel pump control module

(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5].)

Quick connector (fuel system)

(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.5].)

Item	Specification
Fuel injector	Type	High resistance
Fuel supply method	Top-feed
Drive types	Electronic
Pressure regulator control pressure	(kPa {kgf/cm², psi})	Approx. 430 {4.38, 62.4}
Fuel pump type	Electric
Fuel tank capacity	(L {US gal, Imp gal})	2WD: 72.0 {19.0, 15.8} 4WD: 74.0 {19.5, 16.3}

Item

Specification

Fuel injector

Type

High resistance

Fuel supply method

Top-feed

Drive types

Electronic

Pressure regulator control pressure

(kPa {kgf/cm², psi})

Approx. 430 {4.38, 62.4}

Fuel pump type

Electric

Fuel tank capacity

(L {US gal, Imp gal})

2WD: 72.0 {19.0, 15.8}

4WD: 74.0 {19.5, 16.3}

Fuel	Research Octane Number	Country
Premium unleaded fuel (Conforming to EN 228 and within E10)^*1	95 or above	New Caledonia, Turkey, Azerbaijan, Armenia, Georgia, Kazakhstan, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Luxembourg, Slovakia, Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia and Herzegovina, Serbia, Montenegro, Albania, Moldova, Martinique, F.Guiana, Guadeloupe, Cyprus, Malta, Ireland, UK, Taiwan, Tahiti, Vanuatu, Iran, UAE, Lebanon, Israel, Algeria, Libya, Tunisia, Madagascar, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, St. Martin, Singapore, Hong Kong, Malaysia, Brunei, Macau, Mauritius, South Africa, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Suriname, Mongolia, Seychelles, Namibia, Botswana, Swaziland, Lesoto
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)^*2	92 or above	Egypt, Myanmar
90 or above	The Philippines, Marshall Islands, Ustt^*3, Kuwait, Oman, Qatar, Saudi Arabia, Syria, Bahrain, Jordan, Nigeria, Angola, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (LHD), Panama, Peru, B.Virgin, Curacao, Indonesia, Nepal, Sri Lanka, Fiji, Papua New Guinea, Kenya, Zimbabwe, Trinidad and Tobago, Commonwealth of Dominica, Cambodia, Iraq, Ivory Coast, Australia, New zeland, Laos, Cameroon, Burundi, Gabon, Ghana, Tanzania, Mozambique

Fuel

Research Octane Number

Country

Premium unleaded fuel (Conforming to EN 228 and within E10)^*1

95 or above

New Caledonia, Turkey, Azerbaijan, Armenia, Georgia, Kazakhstan, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Luxembourg, Slovakia, Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia and Herzegovina, Serbia, Montenegro, Albania, Moldova, Martinique, F.Guiana, Guadeloupe, Cyprus, Malta, Ireland, UK, Taiwan, Tahiti, Vanuatu, Iran, UAE, Lebanon, Israel, Algeria, Libya, Tunisia, Madagascar, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, St. Martin, Singapore, Hong Kong, Malaysia, Brunei, Macau, Mauritius, South Africa, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Suriname, Mongolia, Seychelles, Namibia, Botswana, Swaziland, Lesoto

Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000)^*2

92 or above

Egypt, Myanmar

90 or above

The Philippines, Marshall Islands, Ustt^*3, Kuwait, Oman, Qatar, Saudi Arabia, Syria, Bahrain, Jordan, Nigeria, Angola, Chile, El Salvador, Costa Rica, Ecuador, Haiti, Colombia, Dominican Republic (LHD), Panama, Peru, B.Virgin, Curacao, Indonesia, Nepal, Sri Lanka, Fiji, Papua New Guinea, Kenya, Zimbabwe, Trinidad and Tobago, Commonwealth of Dominica, Cambodia, Iraq, Ivory Coast, Australia, New zeland, Laos, Cameroon, Burundi, Gabon, Ghana, Tanzania, Mozambique
