EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1099000

Replacement Part

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5.  Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

•  Air hose

•  Air inlet pipe

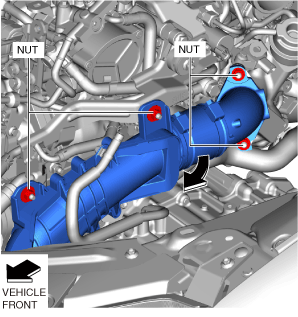

6.  Remove the nuts and set the turbocharger air outlet pipe component aside. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

ac8wzw00002743

7.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

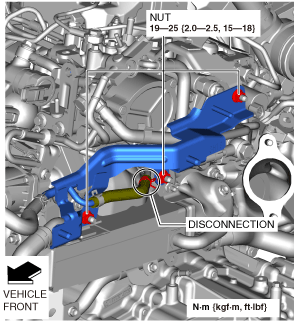

8.  Set the water pipe component aside as shown in the figure.

ac8wzw00003209

9.  Remove the EGR pipe (EGR valve side). (See EGR PIPE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

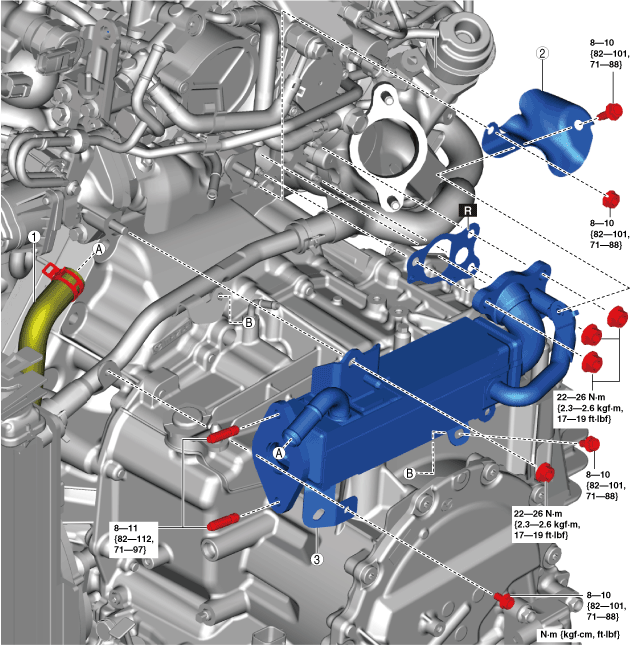

10.  Remove in the order shown in the figure.

11.  Install in the reverse order of removal.

12.

ac8wzw00002745

1	Water hose (See Water Hose Installation Note.)
2	EGR cooler insulator
3	EGR cooler

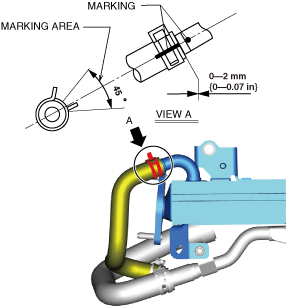

Water Hose Installation Note

1.  Install the water hose as shown in the figure.

ac8wzw00002746
