EMISSION SYSTEM [SKYACTIV-D 2.2]


id0116e1110100


Outline

•  Diesel particulate elimination equipment (Diesel Particulate Filter (DPF) has been adopted which eliminates PM from the exhaust gas.

Structural View

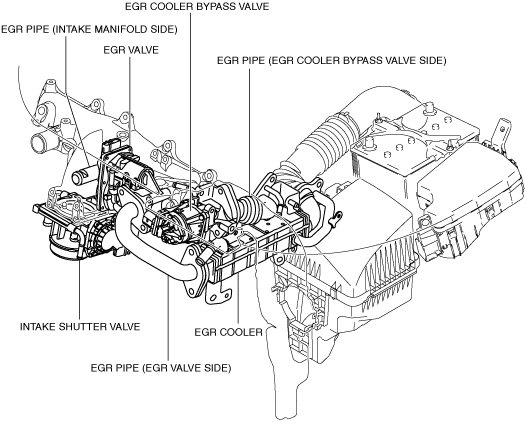

Engine compartment side

ac8wzn00000190

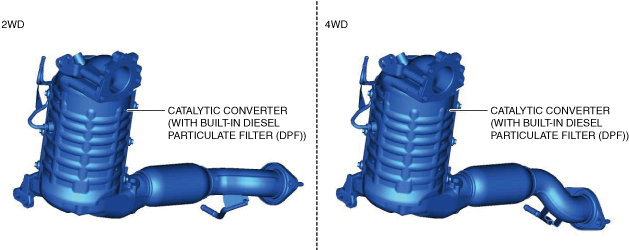

Exhaust system side

ac8wzn00000191


Fuel tank side

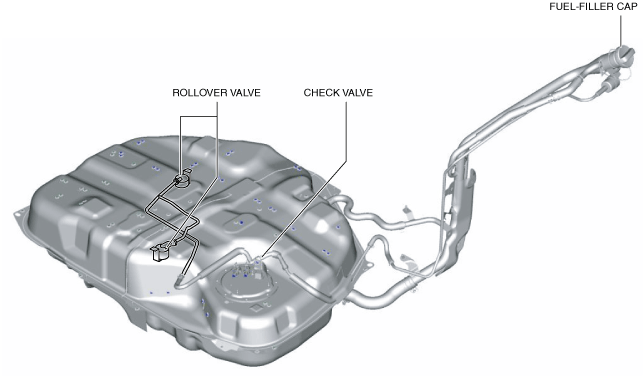

2WD

ac8wzn00000192

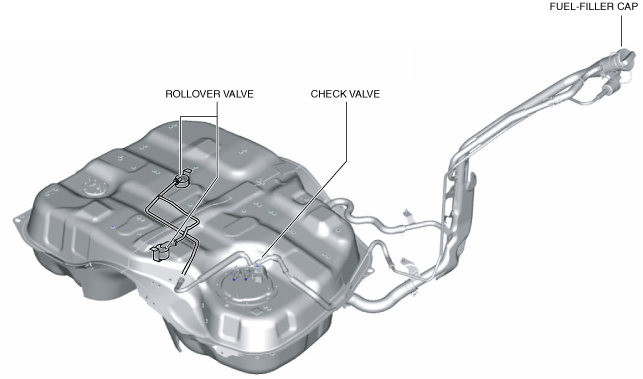

4WD

ac8wzn00000193


System Diagram

ac8wzn00000194

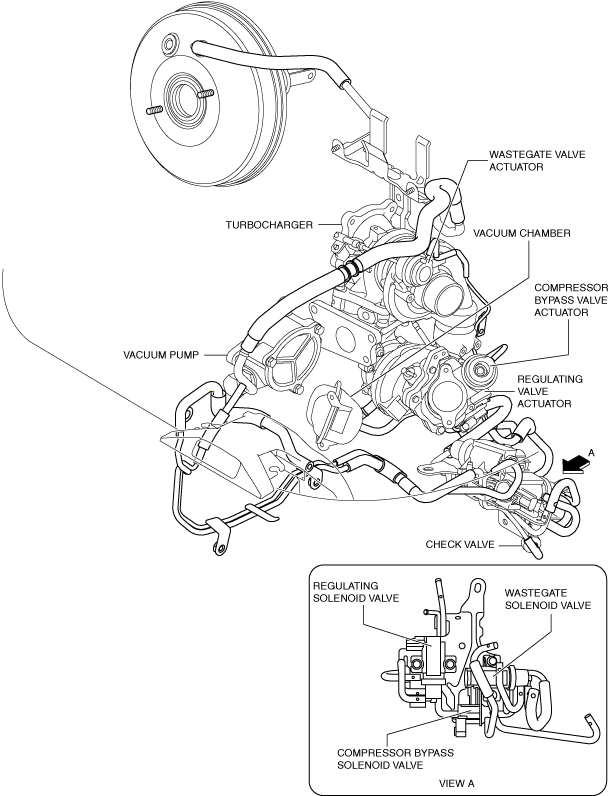

Vacuum Hose Routing Diagram

ac8wzn00000195

Structure

•  The emission system consists of the following parts:

Part/System name

Reference

Exhaust gas purification system
Catalytic converter
Exhaust gas recirculation system
EGR valve
EGR cooler
EGR cooler bypass valve
Fuel-filler cap
Rollover valve
Check valve
Diesel particulate filter (DPF)
Intake shutter valve
