CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5]

id0116zc096400

1. Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

ac5uuw00010744

Charcoal Canister Removal Note

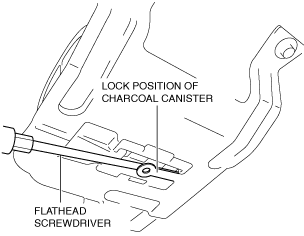

1. Release the lock as shown in the figure.

ac9uuw00009633

2. Remove the charcoal canister.

Charcoal Canister Bracket Installation Note

1. Hook charcoal canister bracket to the vehicle body.

ac5uuw00010824

2. Temporarily tighten bolt A.

3. Temporarily tighten bolt B.

4. Completely tighten bolt C.

5. Completely tighten bolt B.

6. Completely tighten bolt A.

Evaporative Hose Installation Note

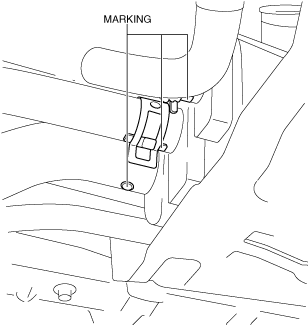

1. Install the hoses with the markings facing downward as shown in the figure.

ac8wzw00003815

1	Evaporative hose (See Evaporative Hose Installation Note.)
2	Charcoal canister (See Charcoal Canister Removal Note.)
3	Charcoal canister bracket (See Charcoal Canister Bracket Installation Note.)
