EMISSION SYSTEM LOCATION INDEX [SKYACTIV-G 2.5]

id0116zc803700

Engine Compartment Side

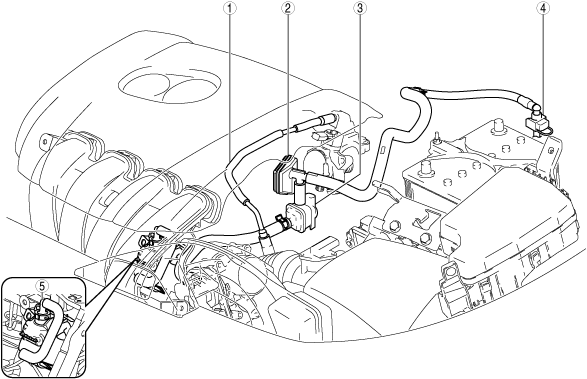

ac5uuw00000893

1	Ventilation hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
2	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CATCH TANK INSPECTION [SKYACTIV-G 2.5].)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See PURGE SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [SKYACTIV-G 2.5].)

Exhaust System Side

2WD

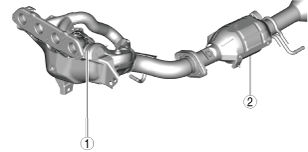

ac5wzw00012238

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

4WD

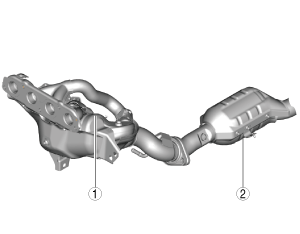

ac5wzw00012239

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

Fuel Tank Side

2WD

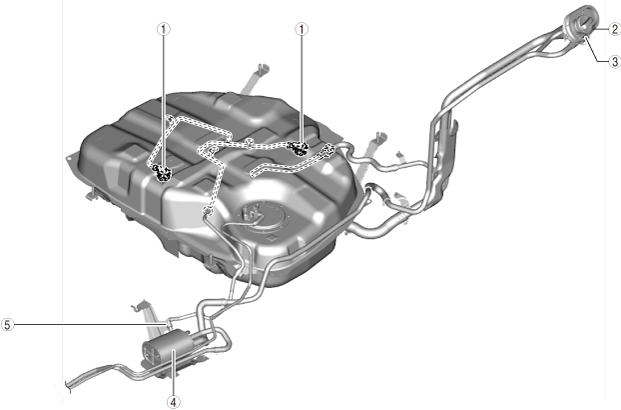

ac8wzw00003649

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5].)
2	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
3	Plug (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5].)
5	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CHECK VALVE INSPECTION [SKYACTIV-G 2.5].)

4WD

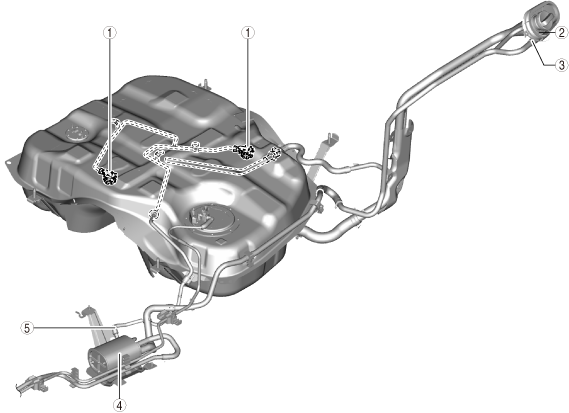

ac8wzw00003650

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ROLLOVER VALVE INSPECTION [SKYACTIV-G 2.5].)
2	Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
3	Plug (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
4	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5].)
5	Check valve (See CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See CHECK VALVE INSPECTION [SKYACTIV-G 2.5].)
