DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0117000046h6

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

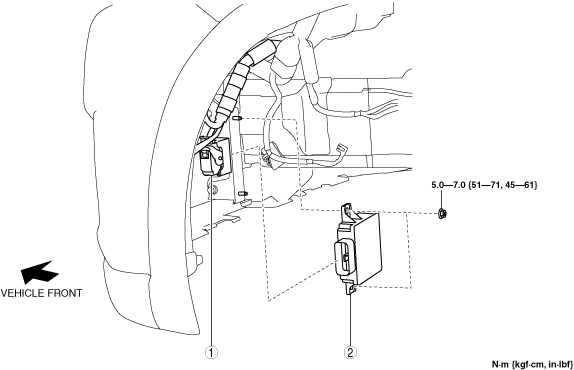

ac5wzw00010190

1	DC-DC converter connector (See DC-DC Converter Connector Disconnection Note.) (See DC-DC Converter Connector Installation Note.)
2	DC-DC converter

DC-DC Converter Connector Disconnection Note

1.  While pressing the tab in the direction of arrow (1) shown in the figure, move the connector lever in the direction of arrow (2).

ac8wzw00002567

DC-DC Converter Connector Installation Note

1.  Before installation, verify that the connector lever is unlocked position.

ac5wzw00002644

2.  Connect the DC-DC converter connector using the following procedure:

(1)  Insert the DC-DC converter connector straight until it stops.

ac5wzw00002645

(2)  Move the connector lever until a click sound is heard.

ac5wzw00002646
