ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7538100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [SKYACTIV-D 2.2].)

4.  Remove the seal plate. (See OIL PAN REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5.  Disconnect the engine oil level sensor connector.

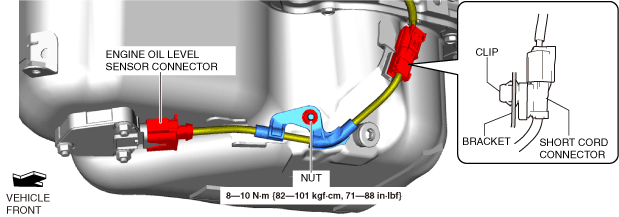

ac8wzw00002788

6.  Remove the nut.

7.  Disconnect the clip from the bracket.

8.  Disconnect the short cord connector.

9.  Remove the short cord.

10.  Remove the nuts. (See Nut Installation Note.)

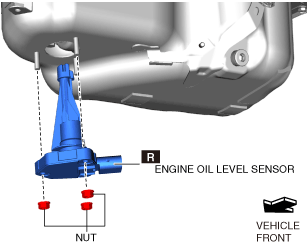

ac8wzw00002789

11.  Remove the engine oil level sensor.

12.  Install in the reverse order of removal.

13.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [SKYACTIV-D 2.2].)

14.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the malfunctioning part according to the inspection results.

15.  Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [SKYACTIV-D 2.2].)

Nut Installation Note

1.  Temporarily tighten the nuts.

ac8wzw00002790

2.  Completely tighten the nuts.
