i-stop OFF SWITCH INSPECTION [SKYACTIV-D 2.2]

id0140z7888900

Note

•  The i-stop OFF switch is integrated with the cluster switch.

•  If the i-stop OFF switch is to be replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

Resistance Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

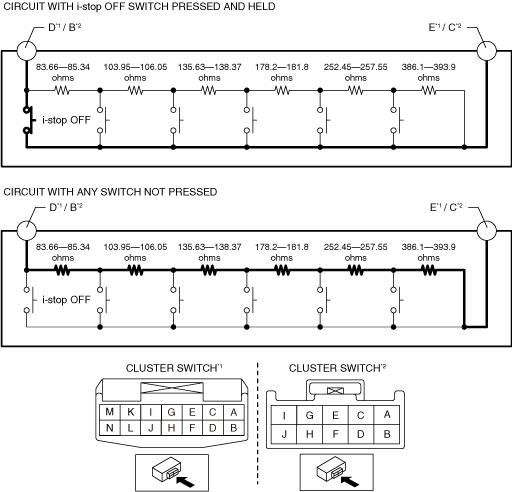

3.  Measure the resistance between cluster switch terminals D and E under the following conditions. (VIN: JM0 KG2W2A*# 100001—199999)

Measure the resistance between cluster switch terminals B and C under the following conditions. (VIN: JM0 KG2W2A*# 200001—)

ac8wzw00003317

•  If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED Illumination Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

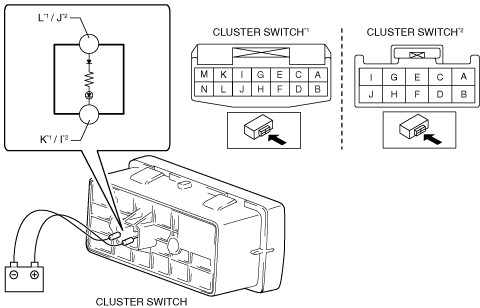

3.  Apply battery positive voltage to cluster switch terminal L, and connect terminal K to ground.

ac8wzw00003318

4.  Verify that the LED is turned on.

•  If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
