REAR TRAILING LINK REMOVAL/INSTALLATION


id021400800100

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove floor under cover No.2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal. (See Suspension Links Installation Note.)

5.  If the rear trailing link is replaced, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

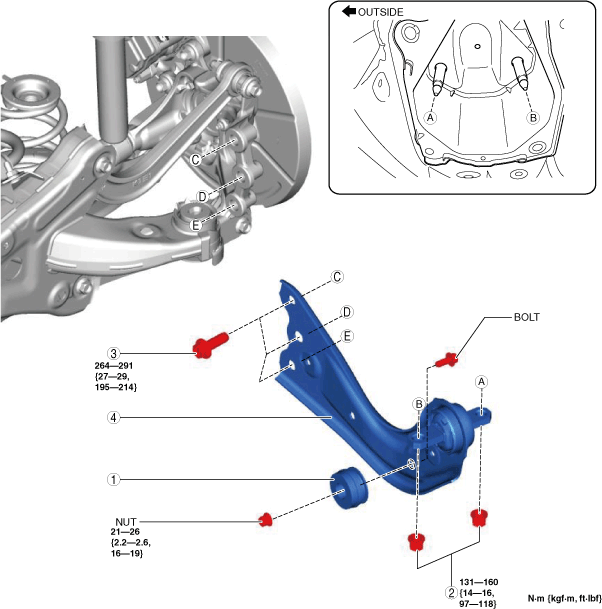

ac8wzw00001932

1
Dynamic damper
2
Rear trailing link installation nut
3
Rear trailing link installation bolt
4
Rear trailing link


Suspension Links Installation Note

1.  When installing the joint sections with rubber bushings, perform the following steps.

(1)  Temporarily tighten the nut with the vehicle lifted up.
(2)  Lower the vehicle to the ground and tighten the nut to the specified torque.


Rear Trailing Link Installation Note

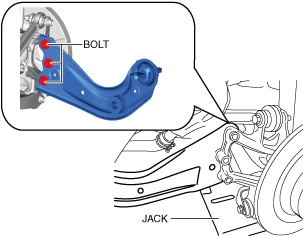

1.  Install the rear trailing link installation bolts using a jack.

ac8wzw00001933

2.  Install the rear trailing link installation nuts.
