WHEEL HUB, STEERING KNUCKLE INSPECTION

id031100800300

Wheel Bearing Excessive Play Inspection

1. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

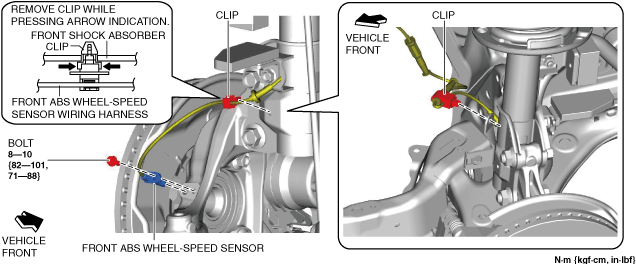

2. Disconnect the front ABS wheel-speed sensor wiring harness on the steering knuckle and set it aside so that it does not interfere with the servicing.

ac8wzw00002001

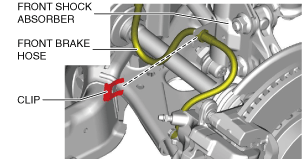

3. Remove the clip from the front shock absorber.

ac8wzw00002002

4. Remove the front brake hose from the front shock absorber.

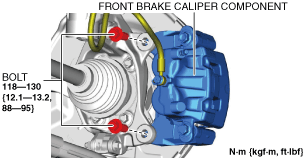

5. Remove the installation bolts from the front brake caliper component.

ac8wzw00002003

6. Remove the front brake caliper component and suspend it in a place out of the way using a cable.

ac8wzw00002004

7. Remove the front disc plate.

ac8wzw00002005

8. Install the magnet base and dial gauge as shown in the figure and inspect for excess play in the axial direction of the wheel bearing.

ac8wzw00002006

Maximum excess play of front wheel bearing

0.05 mm {0.002 in}

• If it exceeds the maximum specification, replace the wheel bearing. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION.)
