REAR DIFFERENTIAL MOUNT RUBBER REMOVAL/INSTALLATION

id031400803000

1.  Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

2.  Support the rear differential component using a jack.

ac8wzw00002129

3.  Place alignment marks on the rear crossmember and rear differential mount rubber as shown in the figure.

ac8wzw00002130

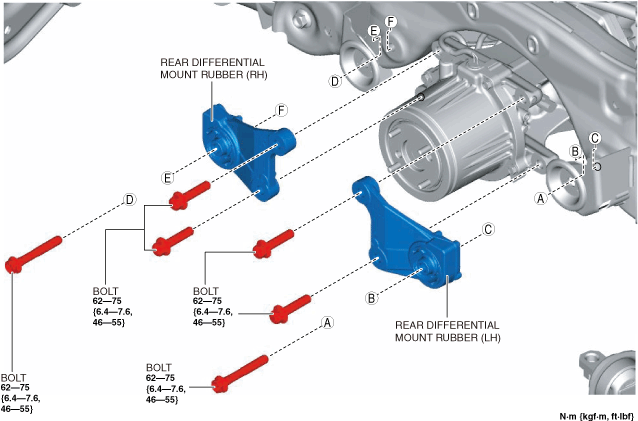

4.  Remove the rear differential mount rubber.

ac8wzw00002131

5.  Install in the reverse order of removal. (See Rear Differential Mount Rubber Installation Note.)

Rear Differential Mount Rubber Installation Note

1.  Align the alignment marks on the rear crossmember and rear differential mount rubber, and install the rear differential mount rubber.

ac8wzw00002130

Note

•  When newly replacing the rear differential mount rubber, place alignment marks on the new part in the same positions as the removed rear differential mount rubber.

ac8wzw00002132

2.  Temporarily tighten bolts A and B.

ac8wzw00002133

3.  Remove the jack from the rear differential component.

4.  Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.

5.  Completely tighten the bolts in the order of A and B.
