REAR BRAKE DISC REMOVAL/INSTALLATION

id041100000900

Note

• When in maintenance mode, the clearance between the disc pad and the disc plate expands.

• When the maintenance mode is completed, perform the electric parking brake automatic adjustment.

• With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

1. Switch to the maintenance mode. (See MAINTENANCE MODE.)

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

4. Disconnect the electric parking brake motor gear unit connector.

ac8wzw00002277

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

7. End the maintenance mode. (See MAINTENANCE MODE.)

8. After installation, pump the brake pedal a few times and inspect the following:

― Disc pad projection does not contact piston and caliper

― Brake drag

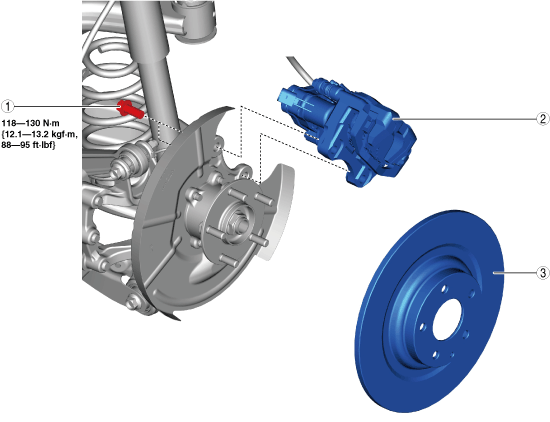

ac8wzw00002278

Rear Brake Caliper Component Removal Note

1. Remove the rear brake caliper component and suspend it in a place out of the way using a cable.

ac8wzw00002279

Rear Brake Caliper Component Installation Note

1. Push the piston in using the commercially available disc brake expand tool.

ac8wzw00002280

2. Install the rear brake caliper component.

1	Bolt
2	Rear brake caliper component (See Rear Brake Caliper Component Removal Note.) (See Rear Brake Caliper Component Installation Note.)
3	Disc plate
