FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800300

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.))

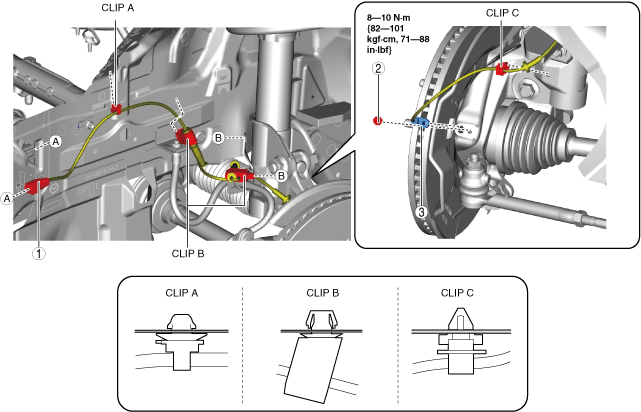

3. Remove in the order shown in the figure.

4. Install in the reverse order of removal.

5. After installation, verify that the front ABS wheel-speed sensor wiring harness is not twisted.

ac8wzw00002312

Connector Disconnection Note

1. Remove the fasteners shown in the figure.

ac8wzw00002313

2. Partially peel back the front mudguard and disconnect the connector.

Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note

Note

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

ac8wzw00002314

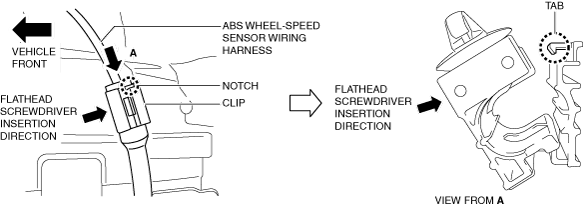

1. Insert a flathead screwdriver from the side where there is no notch as shown in the figure.

ac8wzw00003228

2. Detach the tab as shown in the figure and disconnect the ABS wheel-speed sensor wiring harness and clip.

1	Connector (See Connector Disconnection Note.)
2	Bolt
3	Front ABS wheel-speed sensor (See Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note.)
