REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION

id074000817300

Replacement Part

O-ring

Quantity: 1

Location of use: Refrigerant pressure sensor


SKYACTIV-G 2.5

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

4.  Disconnect the connector.

ac8wzw00003433

5.  Loosen the refrigerant pressure sensor using two spanners.

ac9wzw00003726

6.  Remove the refrigerant pressure sensor.

ac9wzw00003727

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

7.  Install in the reverse order of removal. (See Refrigerant pressure sensor installation note.)

8.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Refrigerant pressure sensor installation note

1.  Apply compressor oil to the O-rings and connect the joints.


SKYACTIV-D 2.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)(See REFRIGERANT CHARGING.)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Disconnect the connector.

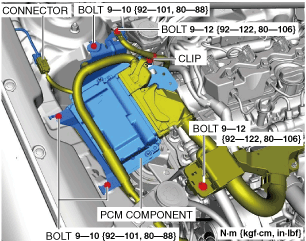

ac8wzw00000209

5.  Remove the bolts.

6.  Remove the clip.

7.  Set the PCM component out of the way.

8.  Disconnect the connector.

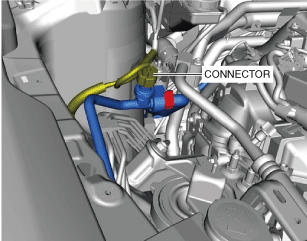

ac8wzw00000210

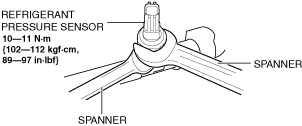

9.  Loosen the refrigerant pressure sensor using two spanners.

ac9wzw00003726

10.  Remove the refrigerant pressure sensor.

ac9wzw00003727

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

11.  Install in the reverse order of removal. (See Refrigerant pressure sensor installation note.)

12.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Refrigerant pressure sensor installation note

1.  Apply compressor oil to the O-rings and connect the joints.
