REFRIGERANT PRESSURE SENSOR INSPECTION

id074000817400

SKYACTIV-G 2.5

1.  Verify the high-pressure side reading of the manifold gauge.

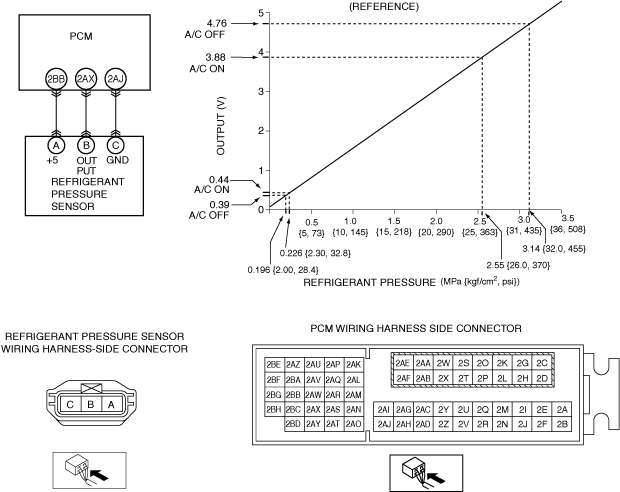

2.  Measure the terminal voltage at PCM terminal 2BB, 2AX and 2AJ.

3.  Using the graph below, measure and verify the terminal voltages at 2AX.

4.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-G 2.5].)

•  Terminal 2BB: Approx. 5 V (Ignition switch ON)

•  Terminal 2AJ: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor.

am6xuw00006829

SKYACTIV-D 2.2

1.  Install the manifold gauge. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Verify the high-pressure side reading of the manifold gauge.

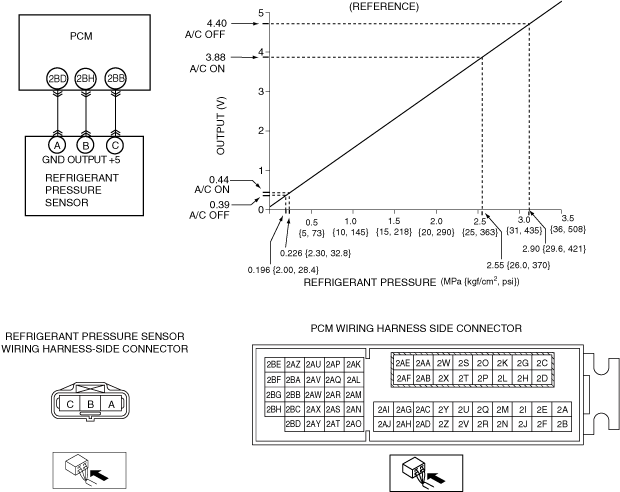

3.  Measure the terminal voltage at PCM terminal 2BD, 2BH and 2BB.

4.  Using the graph below, measure and verify the terminal voltages at 2BH.

5.  Follow the PCM inspection when measuring the other terminal voltages. (See PCM INSPECTION [SKYACTIV-D 2.2].)

•  Terminal 2BB: Approx. 5 V (Ignition switch ON)

•  Terminal 2BD: 1.0 V or less

―  If each voltage is not normal, inspect the related wiring harness.

•  If there is any malfunction, replace the related wiring harness.

•  If the wiring harness is normal, replace the refrigerant pressure sensor. (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.)
