1
|
INSPECT REAR ONE-TOUCH WALK-IN CONTROL MODULE CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Disconnect the rear one-touch walk-in control module connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 6.
|
|
2
|

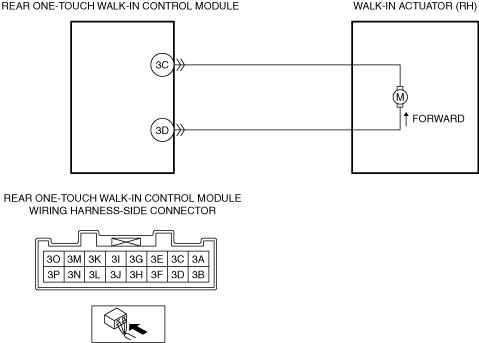

INSPECT WALK-IN ACTUATOR (RH) CIRCUIT FOR SHORT TO GROUND
• Verify that the rear one-touch walk-in control module connector is disconnected.
• Inspect for continuity between the following terminals (wiring harness-side) and body ground:
-
― Rear one-touch walk-in control module terminal 3C
― Rear one-touch walk-in control module terminal 3D
• Is there continuity?
|
Yes
|
Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits:
• Rear one-touch walk-in control module terminal 3C―Walk-in actuator (RH)
• Rear one-touch walk-in control module terminal 3D―Walk-in actuator (RH)
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to Step 6.
|
|
No
|
Go to the next step.
|
|
3
|
INSPECT WALK-IN ACTUATOR (RH) CIRCUIT FOR OPEN CIRCUIT
• Verify that the rear one-touch walk-in control module connector is disconnected.
• Inspect for continuity between the following circuits (wiring harness-side):
-
― Rear one-touch walk-in control module terminal 3C―Walk-in actuator (RH)
― Rear one-touch walk-in control module terminal 3D―Walk-in actuator (RH)
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits:
• Rear one-touch walk-in control module terminal 3C―Walk-in actuator (RH)
• Rear one-touch walk-in control module terminal 3D―Walk-in actuator (RH)
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has an open circuit.
Go to Step 6.
|
|
4
|
INSPECT WALK-IN ACTUATOR (RH)
• Inspect the walk-in actuator (RH).
• Is the walk-in actuator (RH) normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the second-row seat (RH), then go to the Step 6.
|
|
5
|
INSPECT REAR ONE-TOUCH WALK-IN CONTROL MODULE
• Inspect the rear one-touch walk-in control module.
• Is the rear one-touch walk-in control module normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the rear one-touch walk-in control module, then go to the next step.
|
|
6
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Reconnect all the disconnected connectors with the negative battery terminal disconnected.
• Connect the negative battery terminal.
• Clear the DTC for the rear one-touch walk-in control module using the M-MDS.
• Retrieve the rear one-touch walk-in control module DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the rear one-touch walk-in control module.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
7
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
