BONNET ADJUSTMENT

id091000407300

Gap Adjustment

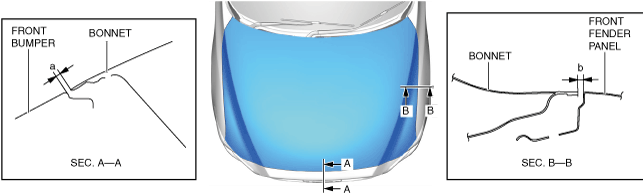

1. Verify that the gaps between the bonnet and the front bumper, and the bonnet and the front fender panel are within the standards.

ac8wzw00000993

Standard clearance

a: 1.7—5.3 mm {0.07—0.20 in}

b: 2.5—4.5 mm {0.10—0.17 in}

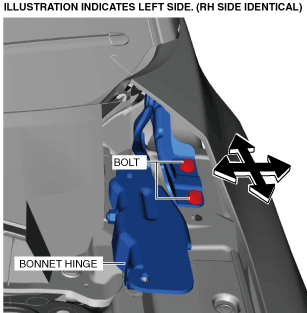

2. Loosen the bonnet hinge installation bolts and adjust the bonnet. (See BONNET REMOVAL/INSTALLATION.)

ac8wzw00000994

3. Tighten the bolts. (See BONNET REMOVAL/INSTALLATION.)

4. Verify that the bonnet opens/closes smoothly.

• If the bonnet does not open/close smoothly, adjust the bonnet latch installation position. (See BONNET LATCH REMOVAL/INSTALLATION.)

Height Difference Adjustment

1. Verify that the height differences between the bonnet and the front bumper, and the bonnet and the front fender panel are within the standards.

ac8wzw00000995

Standard clearance

a: - 2.0—2.0 mm {-0.078—0.078 in}

b: - 1.0—1.0 mm {-0.039—0.039 in}

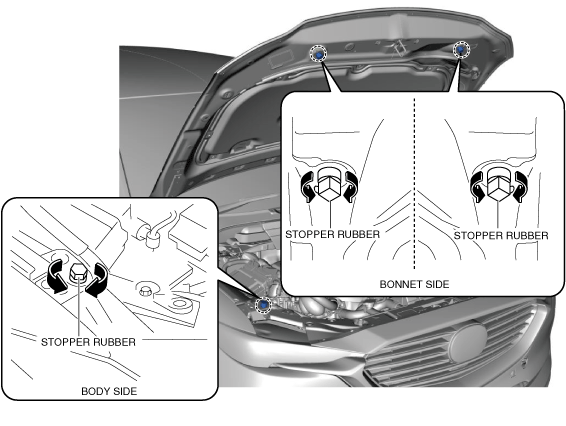

2. Turn the stopper rubbers to adjust the differences in height of the bonnet.

ac8wzw00000996
