FRONT DOOR CHECKER REMOVAL/INSTALLATION

id091100520400

1.  Fully close the front door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

ac8wzw00004099

4.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

5.  Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

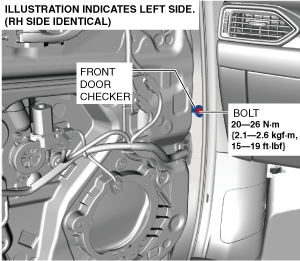

6.  Remove the bolt.

ac8wzw00004100

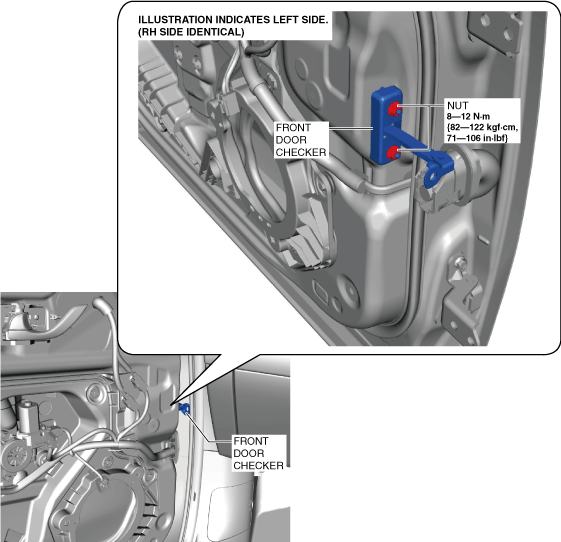

7.  Remove the nuts.

ac8wzw00004101

8.  Pull the front door checker out of the front speaker installation hole.

9.  Install in the reverse order of removal.
