FRONT DOOR HINGE REMOVAL/INSTALLATION

id091100520500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door. (See FRONT DOOR REMOVAL/INSTALLATION.)

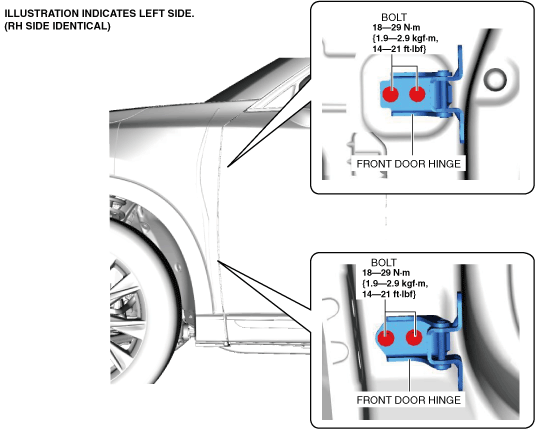

3.  Remove the bolts.

ac8wzw00002191

4.  Remove the front door hinge.

5.  Install in the reverse order of removal.

6.  Adjust the front door. (See DOOR ADJUSTMENT.)

7.  Perform 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
