REAR DOOR CHECKER REMOVAL/INSTALLATION

id091100520700

1.  Fully close the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

5.  Remove the bolt.

ac8wzw00000700

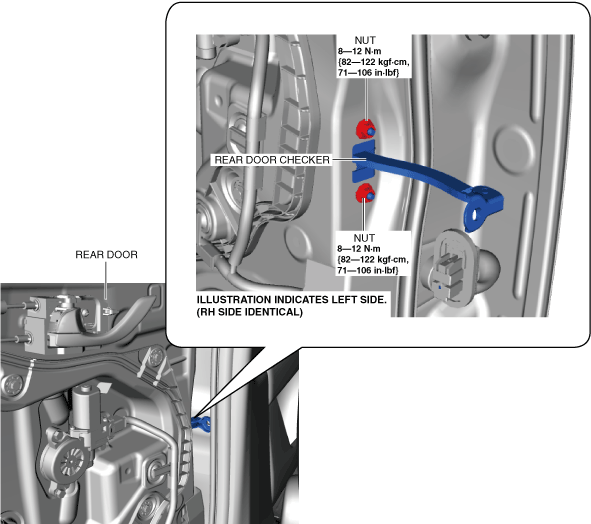

6.  Remove the nuts.

ac8wzw00000701

7.  Pull the rear door checker out of the rear speaker installation hole.

8.  Install in the reverse order of removal.
