REAR DOOR GLASS REMOVAL/INSTALLATION

id091200000300

1.  Perform the rear door glass preparation. (See Rear Door Glass Preparation.)

Note

•  Before removing the rear door glass, the removal procedure for the rear door glass installation bolt can be facilitated by adjusting the top of the rear door glass to the position approx. 105 mm {4.13 in} away from the upper part of the rear beltline molding.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

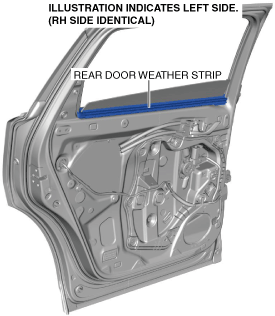

5.  Remove the rear door weatherstrip.

ac8wzw00001048

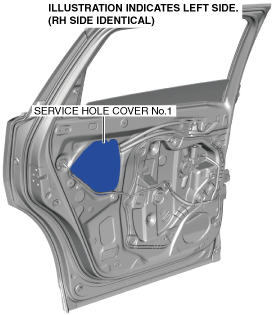

6.  Remove service hole cover No.1.

ac8wzw00001049

7.  Remove the bolts.

ac8wzw00001050

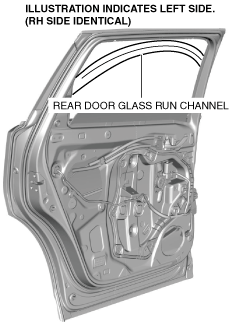

8.  Partially peel back the rear door glass run channel.

ac8wzw00001051

9.  Insert your hand from the service hole cover No.1 opening, tilt the glass guide in the directions of arrows (1) shown in the figure, and then pull it out in the direction of arrow (2) while setting the rear door sash aside.

ac8wzw00001052

10.  Move the rear door glass run channel in the direction of the arrow shown in the figure, and remove the rear door glass run channel from the glass guide.

ac8wzw00001053

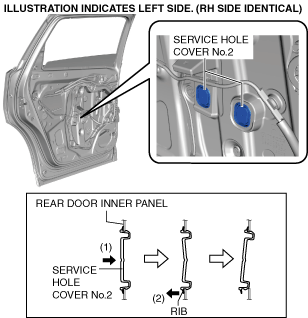

11.  While pressing the center of service hole cover No.2 in the direction of arrow (1) shown in the figure, pull the rib in the direction of arrow (2) and remove service hole cover No.2.

ac8wzw00001054

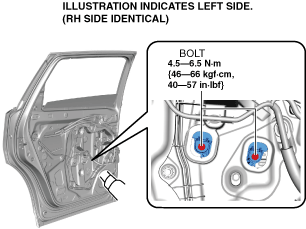

12.  Remove the bolts while supporting the rear door glass from the rear door speaker installation hole with your hand.

ac8wzw00001055

13.  Hold the upper part of the rear door glass while supporting the rear door glass from the rear door speaker installation hole with your hand.

ac8wzw00001056

14.  Lift the rear door glass in the direction of arrow (1) shown in the figure, shift the hand which is supporting the rear door glass from the rear door speaker installation hole to the upper part of the rear door glass, then pull it in the direction of arrow (3) while tilting it in the direction of arrow (2) shown, and remove it from the rear door.

ac8wzw00001057

15.  Install in the reverse order of removal.

Rear Door Glass Preparation

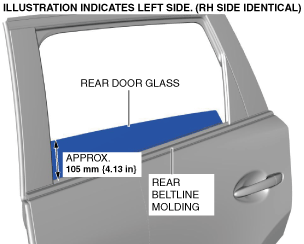

1.  Operate the power window subswitch, and adjust the height of the rear door glass towards the rear to the position approx. 105 mm {4.13 in} from the upper part of the rear beltline molding.

ac8wzw00001058
