POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

id091200002000

Note

•  The power outer mirror switch is integrated with the power window main switch.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3.  Using a remover tool, move the power window main switch cover end in the direction of arrow (1) shown in the figure, move the power window main switch in the direction of arrow (2) while moving the position of the power window main switch cover end, and detach the tabs shown in the figure from the power window main switch cover.

ac8wzw00000914

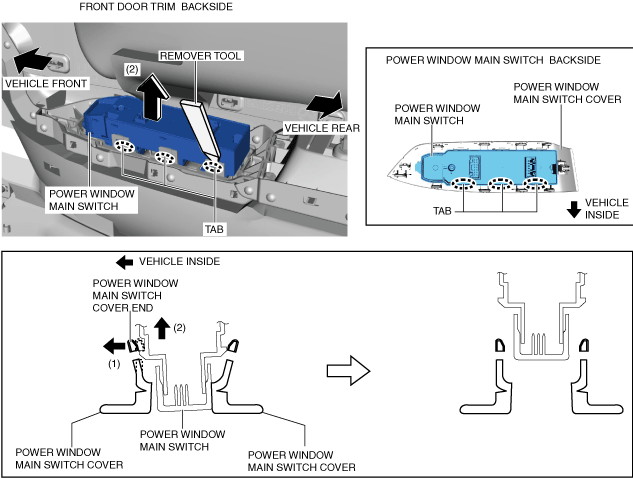

4.  Using a remover tool, move the power window main switch cover end in the direction of arrow (1) shown in the figure, move the power window main switch in the direction of arrow (2) while moving the position of the power window main switch cover end, and detach the tabs shown in the figure from the power window main switch cover.

ac8wzw00000915

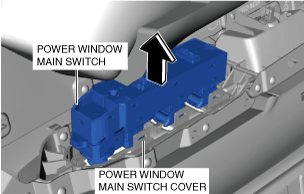

5.  Move the power window main switch in the direction of the arrow shown in the figure and remove the power window main switch from the power window main switch cover.

ac8wzw00000916

6.  Install in the reverse order of removal.
