REARVIEW MIRROR REMOVAL/INSTALLATION

id091200009200

1.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

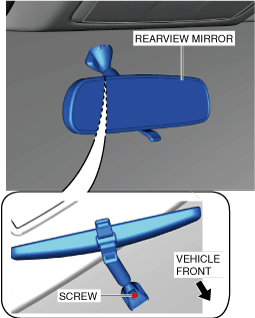

2.  Loosen the screw.

ac8wzw00000937

3.  Pull the rearview mirror in the direction of the arrow shown in the figure.

ac8wzw00000938

4.  Install in the reverse order of removal.
