SECOND-ROW SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION

id091300702800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the connector.

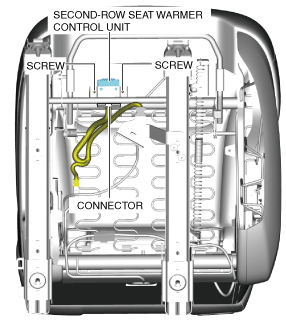

ac8wzw00000476

3.  Remove the screws.

4.  Remove the second-row seat warmer control unit.

5.  Install in the reverse order of removal.
