FRONT SEAT REMOVAL/INSTALLATION
id091300800200
-
Warning
-
• f the sliding mechanisms on both sides are not locked after assembling the front seat, it may move unexpectedly while the vehicle is driven, which could result in serious injury. After assembling the front seat, try moving it back and forth to verify that the sliding mechanism on both sides are locked.
-
Caution
-
• After the front seat has been removed, if the slider lever is operated and the front seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a front seat, do not operate the slider lever.
• Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a front seat.
• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
1. Slide the front seat to the positions where the bolts shown in the figure can be removed.
2. Remove the bolts. (See Bolt Installation Note.)
3. Slide the front seat to the positions where the bolts shown in the figure can be removed.
4. Remove the bolts. (SeeBolt Installation Note.)
5. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

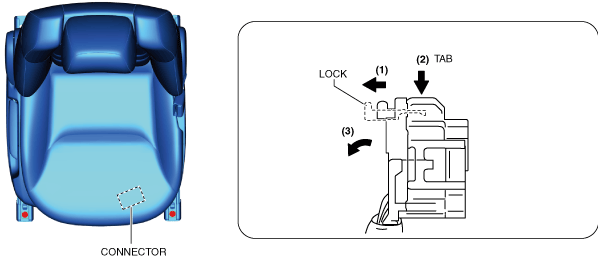

6. Slide the lock in the direction of arrow (1) shown in the figure, and while pressing the tab in the direction of arrow (2), disconnect the connector in the direction of arrow (3).
7. Remove the head restraint.
8. Remove the front seat.
9. Install in the reverse order of removal.
Bolt Installation Note
1. Install the bolts in the order shown in the figure.
