SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION


id091300966500

Warning
•  If the sliding mechanisms on both sides are not locked after assembling the second-row seat, it may move unexpectedly while the vehicle is driven, which could result in serious injury. After assembling the second-row seat, shake it up and down and verify that the sliding mechanism on both sides are locked.
Caution
•  After the second-row seat has been removed, if the slider lever is operated and the second-row seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a second-row seat, do not operate the slider lever.
ac8wzw00000523
•  When performing the procedure with a second-row seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

6:4 Split Adjustable-type Bench Seat (Driver's side)

1.  Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the second-row seat. (Driver's side) (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

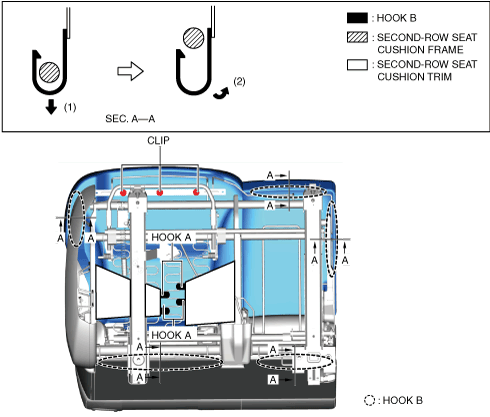

3.  Remove the clips.

ac8wzw00000524

4.  Remove hooks A.

5.  Move hooks B in the order of arrows (1) and (2) shown in the figure and remove them from the second-row seat cushion frame.

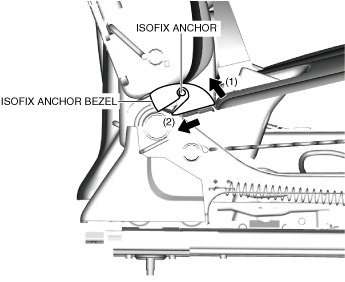

6.  Remove the ISOFIX anchor cover.

7.  Move the ISOFIX anchor bezel in the order of arrows (1) and (2) shown in the figure and detach the ISOFIX anchor bezel from the ISOFIX anchor.

ac8wzw00000525

8.  Remove the second-row seat cushion.

9.  Install in the reverse order of removal.
